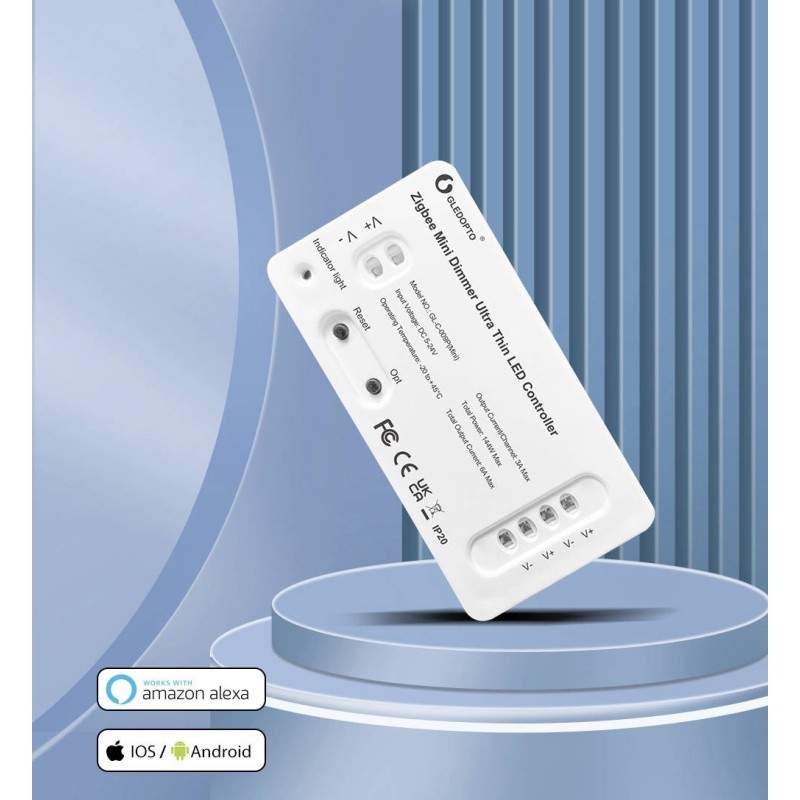

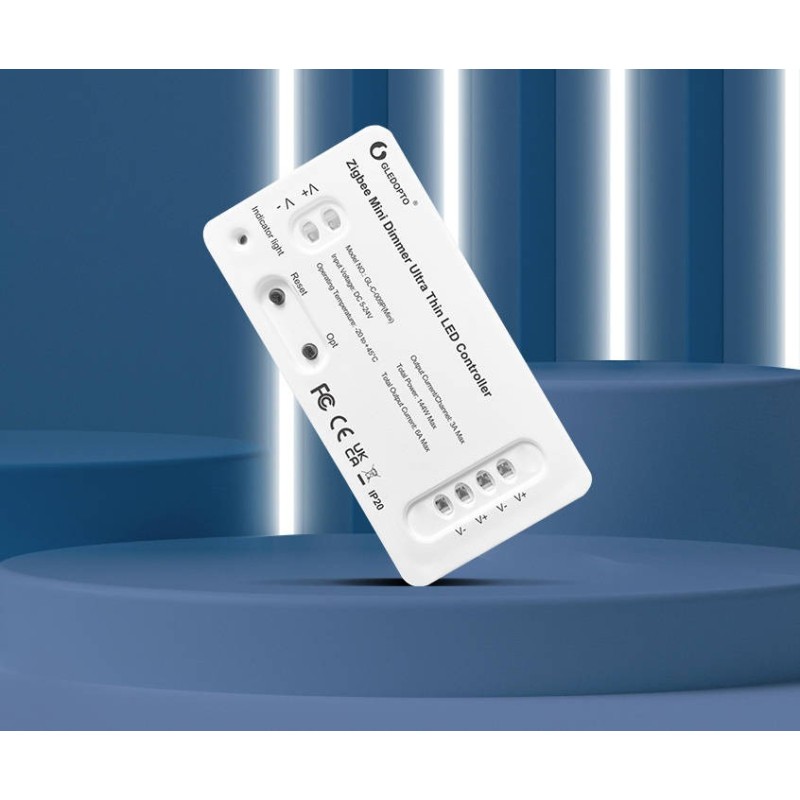

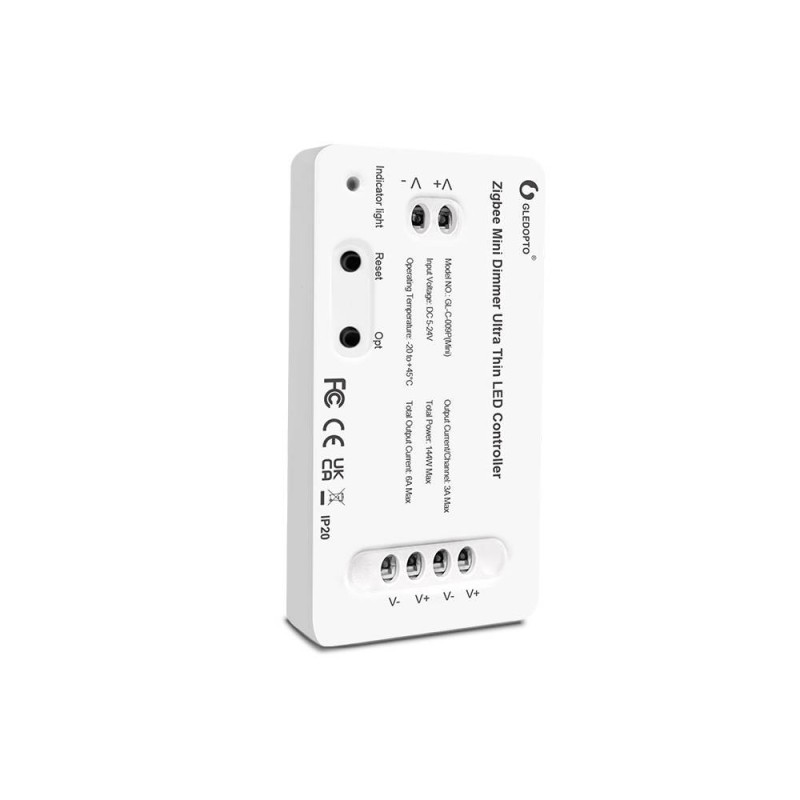

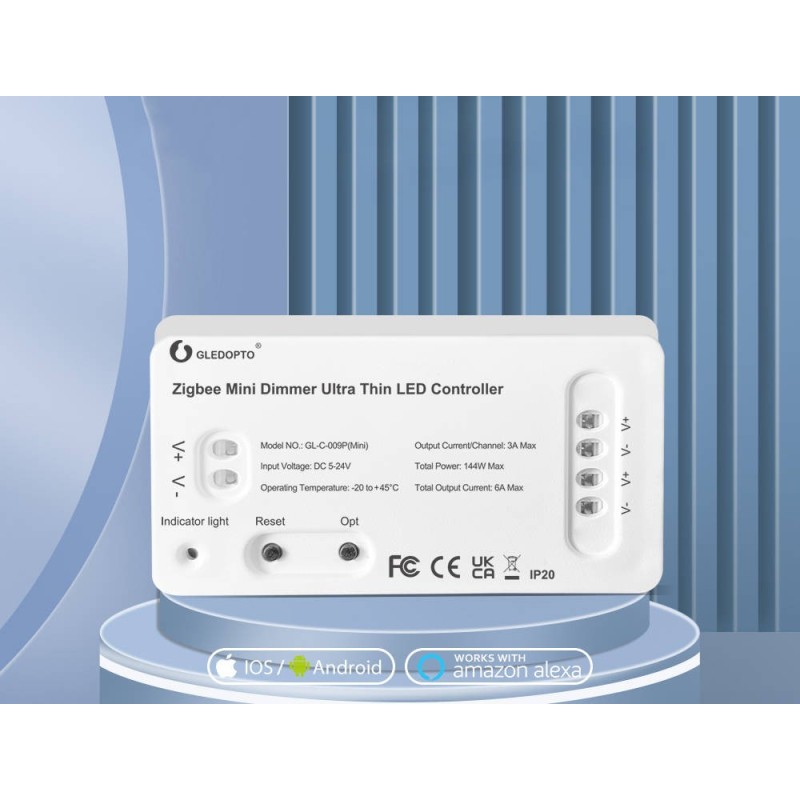

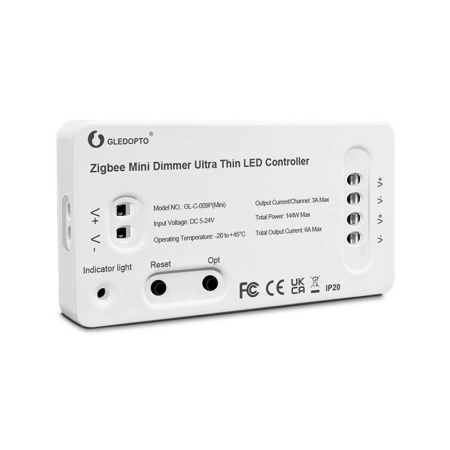

Ultra Mini LED Controller DIM GL ZigBee HUE TUYA
Main features:
Possibility to control 1 color LED strip. Easy and quick control of the LED strip lighting; dimming, turning on and off using a smartphone thanks to ZigBee connectivity or using the GL series RF remote controls from our offer!
The Philips Hue or TUYA application offers the ability to dim or brighten the light
The latest TUYA firmware
Works with Philips Hue gateways , Home, Amazon Echo Plus, Google Assistant
Possibility to change the PWM frequency from 600 Hz to 8 kHz - an option that reduces the sound made by the power supply
Simple connection - o screwing, just press the tab to place the cable
Attention! This device requires a TUYA ZigBee 3.0 gateway or other compatible one or a GL series RF remote control available in our offer.
Controller capabilities:
Support for 1 color strip
Turning on/ switching off Dimming of the connected LED strip
2.4 GHz communication between the controller and the remote control is carried out using radio waves, so the range of the remote control is up to approx. 30-50 m, and the connection between the remote control and the controller penetrates walls.
Memory of the last program/setting: the controller has a memory of the last setting, if we turn off the power, disconnect the voltage and connect it again, the controller will start with the same setting
ZigBee connectivity - control via a smartphone/tablet or tablet from any location - the controller works with ZigBee 3.0 gateways from various manufacturers, HUE, PHilips, IKEA TUYA
Possibility to control the controller using an RF remote control without a ZigBee gate
ZigBee Router functionality - the controller additionally functions as a ZigBee etwork retransmitter. Increases the range of your ZigBee etwork.
Ultra mini sizes: width 1cm, height 3.6cm, length 6.9cm
Basics of the ZigBee protocol:
The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does ot have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi eeds about 5 seconds to connect to the etwork after a state change. ZigBee devices have a huge advantage in automating smart rules
On a WiFi etwork, with 25 devices you will start to experience etwork problems. You can easily add over 50 devices to the ZigBee central unit
The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved for months back
ZigBee communication consumes very little energy, which gives a long battery life.
SMART WIRELESS DEVICES :
Build your own smart home
-without piercing walls and running wires!
The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called cloud.
It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can build a etwork of intelligent dependencies using the application. The operation of the devices depends only on the user's creativity.
The list of wireless system elements is constantly being expanded in our offer.
Smart App from Tuya inc. it is an essential element of the entire smart home ecosystem. It allows you to control all applications with Tuya technology. It is free to download on iOS and Android smartphones.
There are already over half a million different smart devices supported by Tuya technology. The application is available in many languages, both in Polish. It allows you to connect products via any communication protocol from Wifi to Bluetooth to ZigBee.
For more demanding users, Tuya offers a cloud service for an additional fee, thanks to which all device registry will be stored remotely in the cloud, which will increase your security.
The main advantages of the Smart App application :
Quick registration and simple operation of multiple devices.
Home management and sharing access to devices between family members.
Communication via all protocols and even without a connection supported by Pegasus technology, thanks to which your devices will always be connected.
Voice control via peripherals such as Amazon Alexa or Google Assistant.
Advanced automation of connected smart devices.
Event otifications directly on your smartphone.
Specification:
Voltage: 5-24V DC
Maximum output current per channel: 3A
Total maximum output current: 6A
Max. power: 144W for 24V - 76W for 12V
Protection rating: IP20
Operating temperatures: -20°C ~ 45°C
Communication: ZigBee, IEEE 802.15.4
Application: Tuya Smart or other compatible with ZigBee gateways
Dimensions: 69 x 36 x 10mm
Weight: 23.5g
Product code: LC028
