Intelligent WiFi Thermostat for the TUYA application for home heating and building automation applications - 16A load model for underfloor heating, electric radiators, water/gas boilers.
Product main features:
It has a precise built-in temperature sensor
Control via touch interface and free application for IOS or Android
Works with Google Home and Amazon Alexa - with devices compatible with these systems
The thermostat has the ability to select which sensor it should currently read the temperature from (internal only, external only or both).

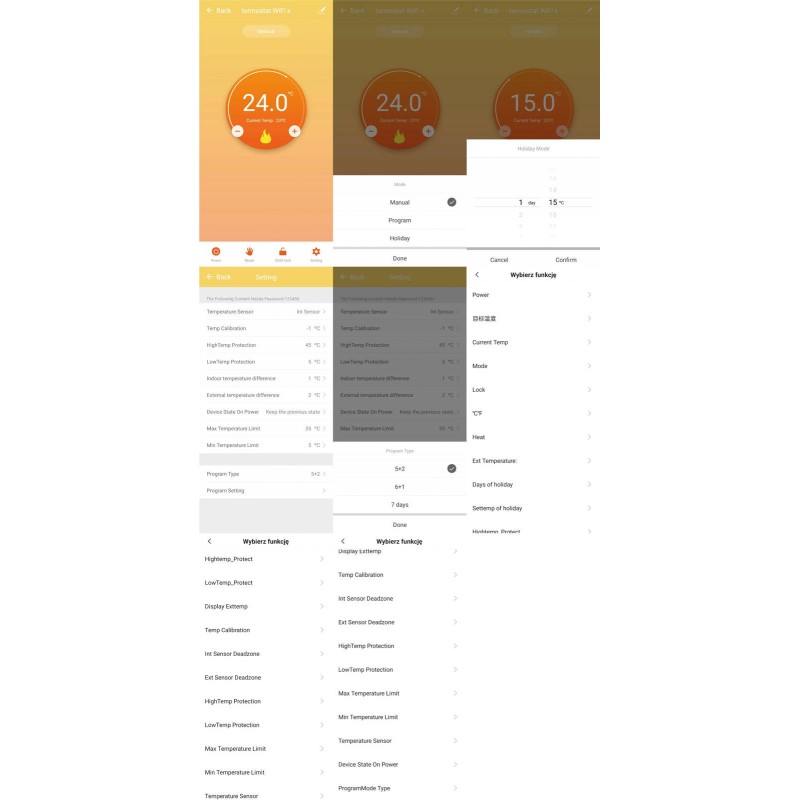

Thanks to the settings in the application, we can set parental lock, temperature correction, maximum and minimum displayed temperature or hysteresis setting
Available operating modes: manual, programmable and holiday
Aesthetic, modern look
Possibility to set the thermostat status after the power returns
Fits standard Polish flush-mounted boxes
Possibility of programming 7 days a week, 6 cycle changes per day
Weekly programming: 5+2, 6+1 or 7
Possibility to share control via the application with many users
Connects to your home WiFi. You can control it from any location in the world. The thermostat does ot require any gateways, switchboards or any fixed IP addresses or port forwarding
It has the ability to automate based on the heating function - heats/does ot heat, i.e. it is possible to add an external relay that will be activated in accordance with the heating status of the thermostat
Heating management
Set the activation schedule for 7 days a week, up to 6 cycle changes per day. You can easily adjust the temperature cycles to your eeds. Extend additional schedules by creating intelligent scenarios.
Use your thermostat's pre-programmed mode to fully optimize your home heating. Set your schedule to take into account lowering the temperature at ight and when o one is at home. If you eed to make adjustments, you can always do it quickly by changing parameters in your phone app or advanced settings in your thermostat. You can make changes from any location with Internet access. By programming the schedule correctly, you can be sure that you are ot wasting money on heating an empty house.
Automations
Connect several smart devices to the thermostat and expand the range of possibilities, thanks to which most settings and heating changes will be applied in accordance with previously planned actions. Smart scenarios are supported in the ative TUYA application
Create your own automations without limits.
Automations using manual or programmable mode
Response settings based on changes in the user's location (GPS on the phone), schedules, functions of other peripheral devices in the TUYA ecosystem and weather changes
A smart home in your hand!
The device works with Tuya Smart - the most popular application for smart devices.
integration of over 11,000 different devices
30 categories (control, air conditioning, monitoring, etc.)
10,000 smart device manufacturers
expanded daily with ew features and supported devices
available for free for Android and iOS
translated into Polish.
A smart home in your hand!
- control the application from any location in the world
- voice control using Google Home or Amazon Alexa
- control the built-in touch panel
- configure advanced execution scenarios in the application with other sensors and devices compatible with the TUYA application (example of automation below - when the window is open, turn off the thermostat and stop heating).
Build your own smart home
No chiseling walls or running cables!
The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called cloud.
It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can use the application to build a etwork of intelligent dependencies. The operation of the devices depends only on the creativity of the user.
The list of wireless system components is constantly expanding in our offer.
Technical Specifications:
Max load:Â 16A
Power supply:Â 230V AC, 50~60Hz
NTC 10K 2.5m sensor (included)
Accuracy: ±0.5°C
Setting range temp.: 5°C - 35°C
Displayed temperature range: 0°C - 70°C
Temp. operating temperature: 0°C ~ 45°C
Operating Humidity:Â 5% ~ 95% RH
Button type:Â touch
Fits standard cans:Â 60mm
Dimensions:Â 85x85x10mm
Protection class:Â IP20
Included:
Loadable thermostat 16A TR068
NTC sensor (10K) 2.5m
Instruction
Screws for assembly
Product code:Â TR068
