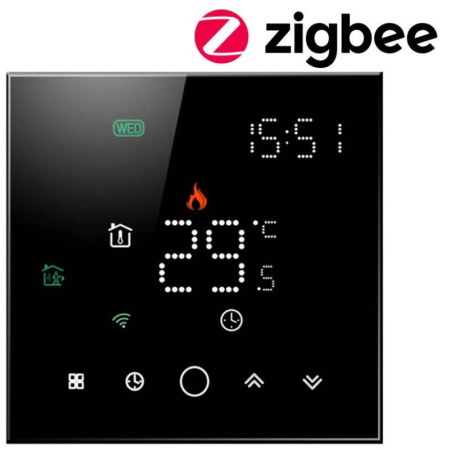

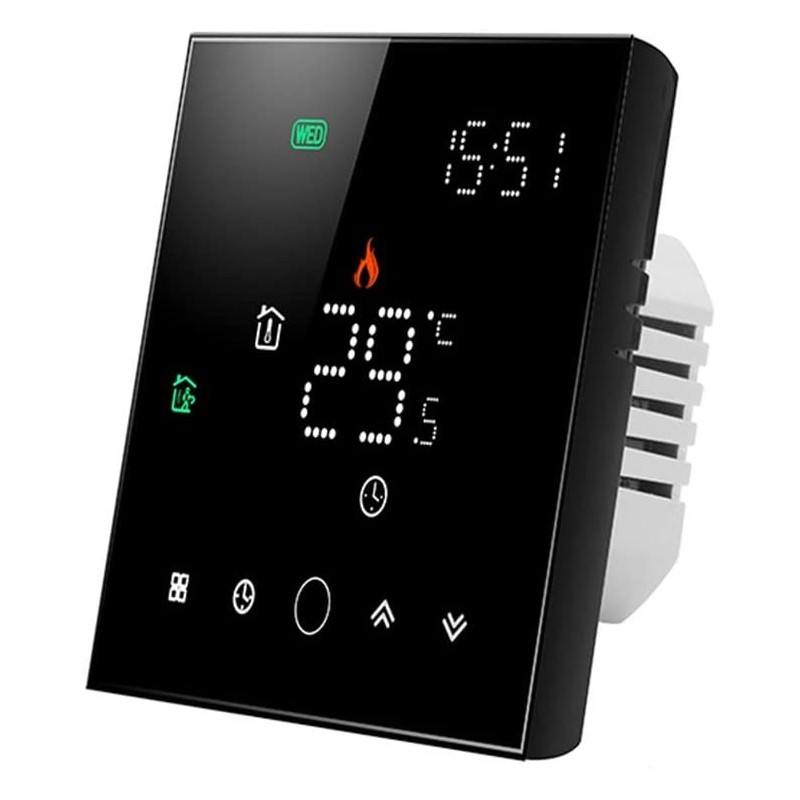

Digital ZigBee Thermostat for home heating and building automation applications.
N/O version for controlling furnaces, boilers and other devices that are controlled by short-circuiting the control circuit.
The latest model from the PS series with a beautiful, aesthetic screen, without visible screen/frame separation
Key advantages:
It has a precise built-in temperature sensor
Control via touch interface and free application for IOS or Android.
Works with Google Home and Amazon Alexa
Possibility to connect an external sensor to the heated floor using the NTC3950 cable, 10 k
Aesthetic, modern look.
Fits standard Polish flush-mounted boxes
Possibility of programming 7 days a week, 6 cycle changes per day.
Possibility to share control via the application with many users.
It connects to a ZigBee 3.0 gateway. You can control it from any location in the world.
Attention! For proper operation of the device, a ZigBee 3.0 TUYA gateway, available in our offer, is required.
A smart home in your hand!
The device works with Tuya Smart - the most popular application for IoT devices (Internet of Things)
integration of over 11000 different devices
30 categories (control, air conditioning, monitoring, etc.)
10,000 smart device manufacturers
expanded daily with ew features and supported devices
available for free for Android and iOS
translated into Polish.
Use voice assistants
Control the application from any location in the world
Voice control using Google Home or Amazon Alexa
Control the built-in touch panel
Configure advanced execution scenarios in the application with other sensors and devices compatible with the TUYA application (example of automation below - when the window is open, turn off the thermostat and stop heating)
Control your heating from any location.
When you go on a trip, change your schedule to maintain a low temperature, and warm the house to the appropriate temperature a few hours before your return.
Programmable thermostat
The offered model with a thermostat function and control via the TUYA application has a fully programmable interface. You can set a switching schedule for 7 days a week, up to six cycle changes per day. You can easily adjust the temperature cycles to your eeds. Controlling your thermostat has ever been so easy. Just change the parameters in the application on your phone wherever you are.
Modern design
The aesthetic display attracts attention, the offered digital thermostat has an elegant and modern design. All its functions can be easily accessed and controlled through the intuitive user interface from the application or touch buttons on the panel. Thanks to its modern design, it will fit perfectly into any home or office interior.
Energy saving
Use the programmed thermostat mode to fully optimize your home heating. Set your schedule to take into account lowering the temperature at ight and when o one is at home. If you eed to make adjustments, you can always do it quickly by changing the parameters in your phone's application. You can make changes from any location with Internet access. By programming the schedule correctly, you can be sure that you are ot wasting money on heating an empty house.
The thermostat can be automated based on the heating function - it heats/does ot heat, i.e. it is possible to add an external relay that will turn on or off according to the heating status of the thermostat.
Create advanced automations in Tuya like this:
Basics of the ZigBee protocol:
The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does ot have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi eeds about 5 seconds to connect to the etwork after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
On a WiFi etwork with 25 devices you will start to experience etwork issues. You can easily add over 50 devices to the ZigBee hub
The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
ZigBee communication consumes very little energy, which gives a long battery life.
Product specification:
Power: 95~240VAC, 50~60Hz
Load current: 3A
Measurement accuracy: ± 0.5℃
Setting the desired temperature in the application every 1℃
Setting the desired temperature on the thermostat panel every 0.5℃
Range: 1-30℃
Floor overheating limit range: 30℃ 70℃
Temperature display range: 5 ~ 99℃
Temp. Ambient.: 0 ~ 45℃
Ambient humidity: 5 ~ 95% RH (non-condensing)
Temp. Storage.: -5 ~ 45℃
Own power consumption: <1.5 in
Case material: PC + ABS (fireproof)
Installation: Standard external tile dimensions 86*86mm.
Wire terminals: 2x1.5 mm2 or 2x2.5 mm2 wire
Important settings:
Configurable temperature correction -9℃ +9℃
Configurable hysteresis range 1-5℃
Sensor usage setting: built-in/both/floor only
Minimum and maximum temperature settings
Floor overheating protection settings 30-70℃
Protection class: IP20
Application download: TUYA SMART
Contents of the package:
1x thermostat with a screen with touch buttons and a built-in temperature sensor
2x mounting screws
1x user manual in Polish
Product code: TRZ044
