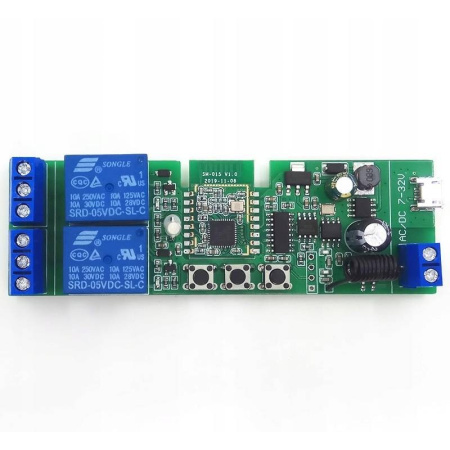

ZigBee DC driver for the Ewelink and TUYA applications or other applications supporting ZigBee 3.0
Power supply - 5V Micro USB or 7-32 V AC/DC with support for RF 433.92 MHz EV 1525 remote controls Fixed codes
RF 433.92 MHz remote controls sold separately. Look for our other offers.
Compatible with ZigBee 3.0 gateways - TUYA, eWelink, etc.
3 operating modes: monostable (pulse), bistable (self-locking), with time delay.
Application:
The switch is perfect for controlling lighting, gates, actuators, door control, button signaling, computer control, access control, voltage-free control - heating furnaces, control of 230 V devices.
Works with Google Home, Amazon Alexa through compatible gateways.
Connect it to your gate module in place of the manual button contacts and you have a smartphone-controlled garage door.
The device is intended to control other electronics and does ot have a housing.
ATTENTION. Depending on the delivery, the appearance of the printed circuit board, relay or arrangement of elements on the board may differ.
Basics of the ZigBee protocol:
The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does ot have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi eeds about 5 seconds to connect to the etwork after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
On a WiFi etwork with 25 devices you will start to experience etwork issues. You can easily add over 50 devices to the ZigBee hub
The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
ZigBee communication consumes very little energy, which gives a long battery life.
Specification:
Dimensions:Â 104x33x19 mm
Own power consumption:Â <1 W
Connectivity standard:Â ZigBee 3.0
Standby current:Â 80 mA
Receiver:Â RF433.92 MHz fixed codes EV1525
Input voltages:Â 5V DC or 5V/7-32V DC
LEDs that indicate the operating mode, WiFi status, on/off relay status
Operating conditions: -30°C to 75°C humidity less than 95%
Security mechanisms: WEP/WPA-PSK/WPA2-PSKNC: Normally closed relayCOM: CommonNO: Normally open
Set contains:
ZigBee+RF voltage-free 2CH DC Ewelink Tuya controller
User manual in Polish
Packaging
Product code:Â SZ168R
