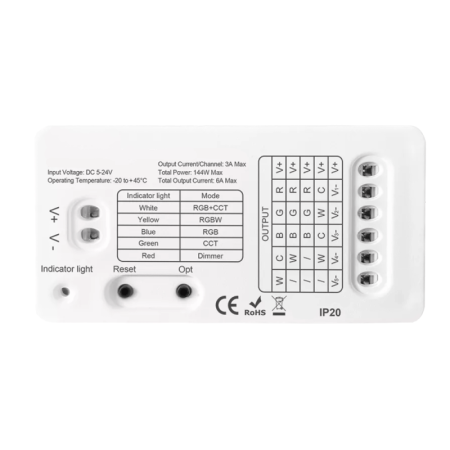

5 in 1 Ultra Mini ZigBee Tuya LED Controller
Main features:
Possibility to control 5 different types of LED strips. Easy and quick control of LED strip lighting; RGB + CCT, RGBW, RGB, CCT, Dimmer, via your smartphone thanks to ZigBee! Or using RF remote controls from our offer!
The Philips Hue or TUYA application offers the ability to change colors from the built-in color ring, additionally we can darken or lighten the selected color, and control the color temperature of white.
Latest TUYA firmware.
Works with Philips Hue, Home, Amazon Echo Plus and Google Assistant gateways.
Possibility to change the PWM frequency from 600 Hz to 8 kHz - an option that allows you to reduce the sound emitted by the power supply
Simple connection - o screwing, just press the tab to insert the cable
Attention! This device requires a ZigBee 3.0 TUYA gateway or another compatible one or an RF remote control from the GL series available in our offer.
Controller capabilities:
Support for 5 different standards
Support for two white channels - additional white color temperature in RGBCCT tapes - possibility of smooth adjustment of the white color temperature
Dimmable - we can dim and brighten.
Turning on and off the LED strip with memory settings.
Possibility of acceleration and deceleration - we can accelerate and decelerate the automatic color transition using 2 buttons on the remote control.
2.4 GHz communication between the controller and the remote control takes place via radio waves, which means that the range of the remote control is up to approx. 30-50 m. The communication between the remote control and the controller penetrates walls.
Memory of the last program/settings:Â the controller has a memory of the last setting, if we turn off the power, disconnect the power supply and connect it again, the controller will start with the same setting
ZigBee connectivity - control via smartphone/tablet or tablet from any location - the controller works with ZigBee 3.0 gateways from various manufacturers
Possibility to control the controller using an RF remote control without a ZigBee gateway
ZigBee Router functionality - the controller additionally acts as a repeater of the ZigBee etwork. Extends the range of your ZigBee etwork.
Ultra mini sizes. Width 1 cm, height 3.6 cm, length 7 cm
Basics of the ZigBee protocol:
The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings
ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does ot have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi eeds about 5 seconds to connect to the etwork after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules
On a WiFi etwork with 25 devices you will start to experience etwork issues. You can easily add over 50 devices to the ZigBee hub
The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago
ZigBee communication consumes very little energy, which gives a long battery life.
SMART WIRELESS DEVICES:
Build your own smart home
-no piercing walls or running cables!
The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called cloud.
It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can use the application to build a etwork of intelligent dependencies. The operation of the devices depends only on the creativity of the user.
The list of wireless system components is constantly expanding in our offer.
Smart App from Tuya inc. it is an essential element of the entire smart home ecosystem. It allows you to control all applications with Tuya technology. It is free to download for iOS and Android smartphones.
There are already over half a million different smart devices supported by Tuya technology. The application is available in many languages, both in Polish. It allows you to connect products via any communication protocol, from Wifi to Bluetooth to ZigBee.
For more demanding users, Tuya offers a cloud service for an additional fee, thanks to which all device registry will be stored remotely in the cloud, which will increase your security.
The main advantages of the Smart App:
Fast registration and easy operation of multiple devices.
Home management and sharing daccess to devices between family members.
Communication via all protocols and even without a connection supported by Pegasus technology, so your devices will always be connected.
Voice control via peripherals such as Amazon Alexa or Google Assistant.
Advanced automation of connected smart devices.
Event otifications directly on your smartphone.
Specification:
Voltage: 5-24V DC
Maximum output current per channel: 3A
Total maximum output current: 6A
Max. power: 144W for 24V - 76W for 12V
Degree of protection: IP20
Operating temperatures: -20°C ~ 45°C
Communication: ZigBee, IEEEÂ 802.15.4
Application: Tuya Smart or other compatible with ZigBee gateways
Dimensions: 70 x 36 x 10mm
Weight: 23.5g
Product code: LC029
