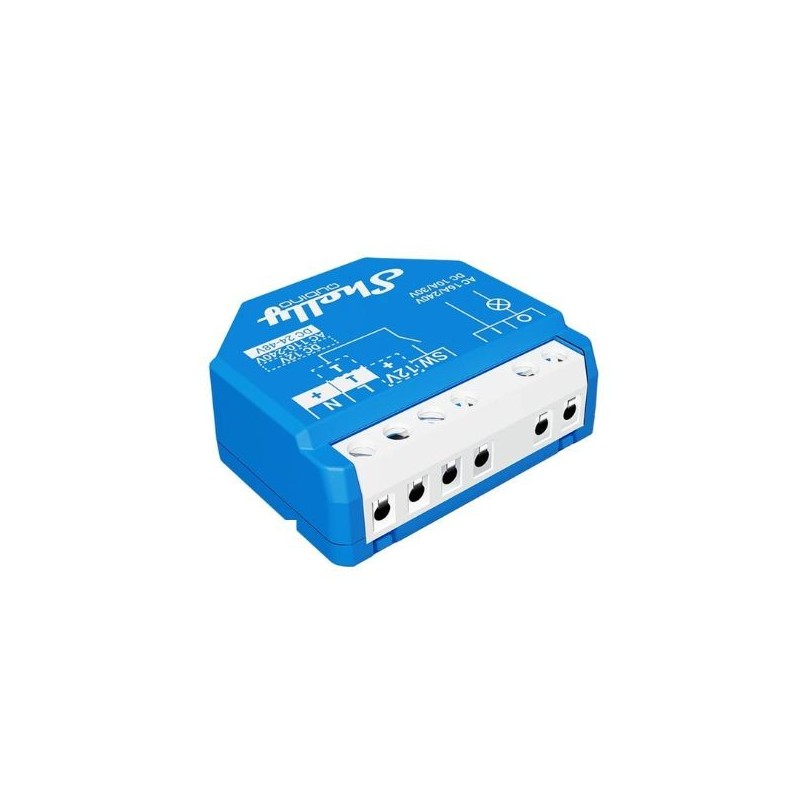

Shelly Qubino Wave 1 is a smart relay module, part of the Shelly Wave family, which uses the Z-Wave protocol for communication (868.42 MHz in Europe). As Z-Wave is a smartwave protocol, it was developed specifically for communication between smart devices. Thanks to the sub-gigahertz frequency, the signal propagation is good and thanks to the Z-Wave MESH etwork topology, devices far away from the central unit can communicate properly (devices under continuous power supply act as signal relays). Z-Wave devices eed a Z-Wave Hub or USB coordinator (connected to a miniPC, for example) to work. The Z-Wave protocol uses a unified communication command class, so that thousands of products from hundreds of different brands are compatible with each other, and devices in a Z-Wave system can work together as a etwork. A Z-Wawe etwork can contain up to 232 devices. An additional advantage of the Z-Wave protocol is that it supports Association Groups, which allow direct associations to be created between individual devices in the etwork. An additional advantage of Z-Wave devices is that they can be configured with a umber of parameters at the protocol level, so that they can be customised to meet the most specific eeds.
The Shelly Wave 1 smart relay module, can be powered from DC 12 VDC (on a separate line terminal) 24-48 VDC and 230VAC AC voltages, with dry contact control between the output line terminals. The module is also equipped with overheat protection, ensuring safe operation even in small spaces with wall sockets.
Pairing:
the module has an "S" button, which is a function button. This button is used to start the pairing, unpairing and factory reset processes. These functions are available for a limited period of time after power-up.
Pairing/Removal/Factory Reset:
Press and hold the "S" button to pair until the status LED turns blue. Then directly press the "S" button again (min 2 seconds) to initiate the pairing/unpairing status.
Specifications:
- Output: Dry contact
- Maximum Current: 230 VAC 16A (with resistive load),
30 VDC 10A (with resistive load)
- Low standby power consumption: 0.3 W.
- Communication protocol: Z-Wave 800
- Z-Wave frequency: 868.4 MHz (EU)
- Range: up to 40 m inside the building (walls can be reduced by slabs)
- SmartStart: YES
- S2 encryption: YES
- Z-Wave repeater function: YES
- Wireless firmware update (OTA): YES
- Operating temperature: -20 - +40 °C
- Size: 37 x 42 x 16 mm - Weight: 37g
Mounting options:
- Typically fits into a standard size mounting box, but a recessed mounting box is recommended to speed up module installation time
- DIN-rail adapter (separate product) can be used to mount on hat rails, in-line.
Like other smart relays, this one requires ot only a phase wire but also a eutral wire.
