Sonoff 4CH DC 4 Channel Wifi Controller
WITH SUPPORT FOR RF 433 MHz REMOTES
Power supply - 5 V Micro USB or 7-32 V AC/DC

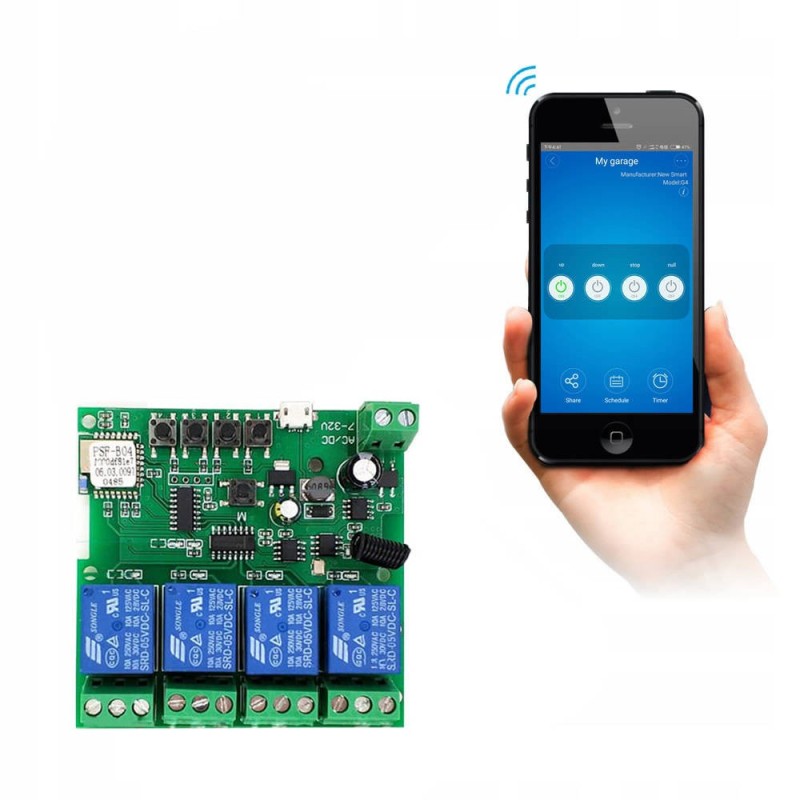

Control via eWelink application
3 operating modes: monostable (pulse), bistable (self-locking), with time delay.
Application:

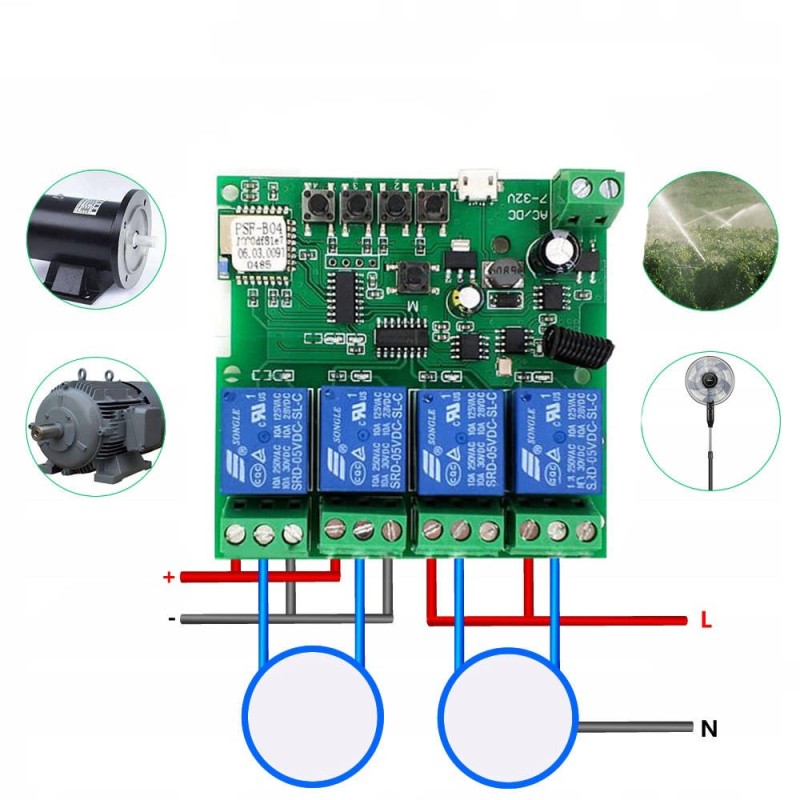

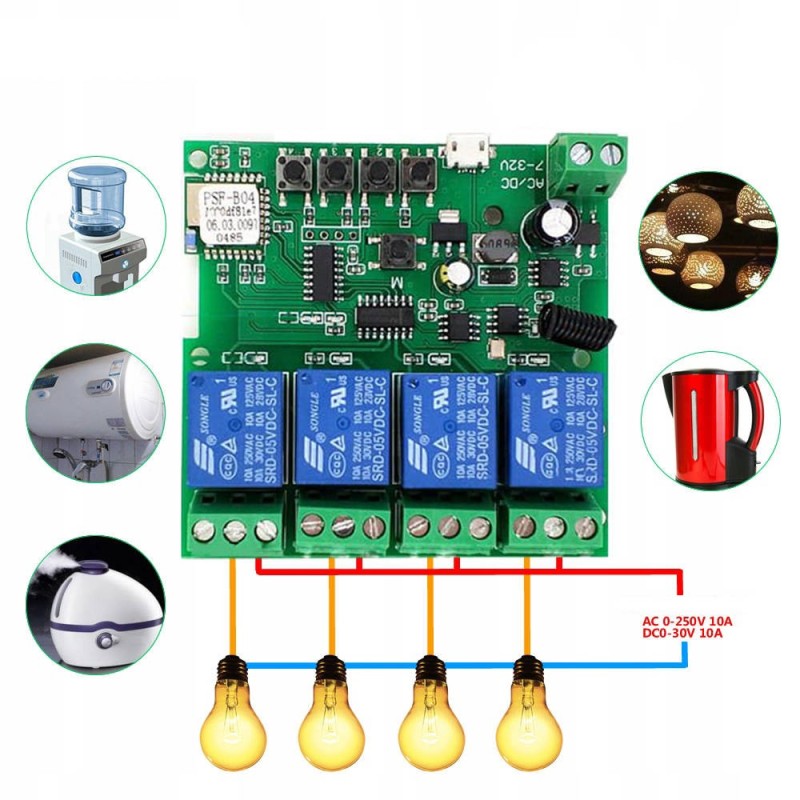

The switch is perfect for controlling lighting, gates, actuators, door control, button signaling, computer control, access control, voltage-free control - heating furnaces, control of 230V devices
The controller works with all RF 433 MHz remote controls in our offer!
It can also be connected to cable switches.

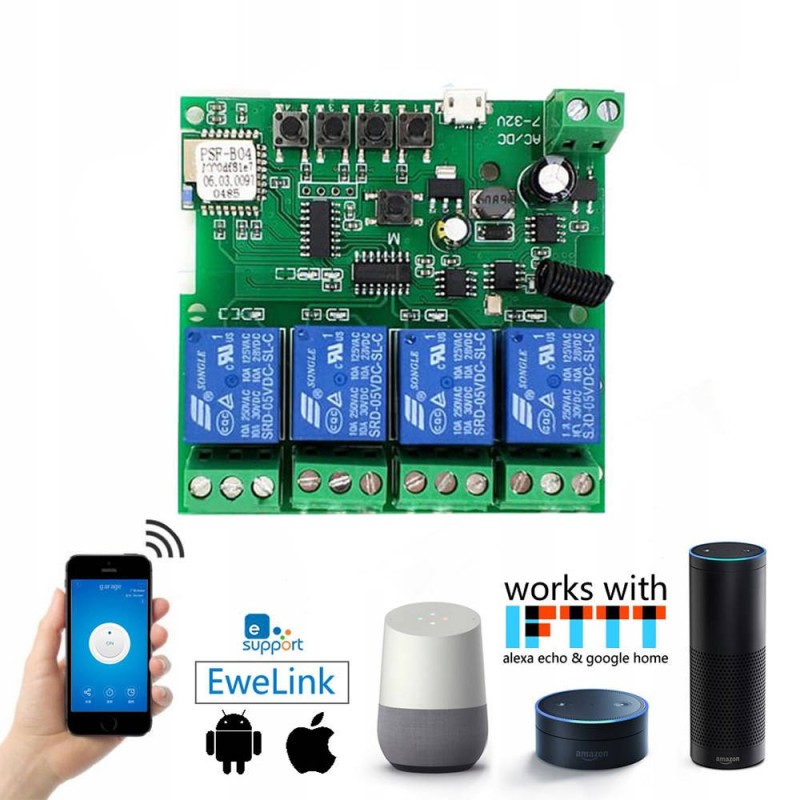

Works with Google Home, Amazon Alexa, IFTTT

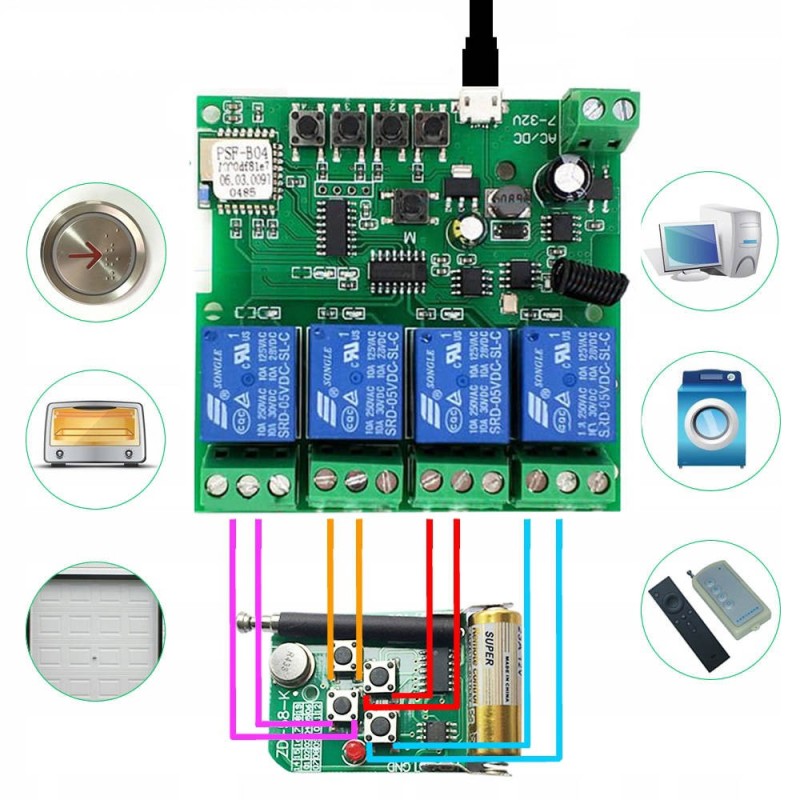

Connect it to your gate module in place of the manual button contacts and you have a smartphone-controlled garage door.
The device is intended to control other electronics and does ot have a housing.
4 Channel Wi-Fi Wireless Switch/Relay 3 Working Modes)
Application:
The switch can be used for access control, turning on a computer, garage door, etc
Package includes:
1X4 Channel Wi-Fi + RF433MHz Wireless Switch
Input power supply: AC/DC 7-32V or USB 5V/250mA
Two input interfaces, 7-36V or Micro USB 5V
High-quality SONGLE or FANHAR relays depending on delivery.
Output: 0V - NO/COM/NC x4
Channels: 4
RF433.92 MHz receiver, fixed codes EV1527
Operating mode: Monostable/Bistable/Variable
Input voltages: 5V DC or 5V/7-32V AC/DC
6 LEDs that indicate working mode, WiFi status, on/off relay status
Operating conditions -30°C to 45°C humidity less than 95%
2.4 GHz Wi-Fi standard
WEP/WPA-PSK/WPA2-PSK security mechanisms
Manufacturer of the main MCU processor: ITEAD SONOFF TECHNOLOGIES
NC: Normally closed relay - ormally closed
COM: Common
NO: Normal open - ormally open
Dimensions: 77 x 75 x 17 mm
Full support for the eWelink application!
Connect this device to your Sonoff ecosystem.
Possibility to select the channel state after power recovery - Enabled, Disabled, Store
Possibility to set a time loop, stopwatch in the application. After starting, the switch will automatically turn off after a specified period of 1 min-99 h
Setting a schedule for up to 8 events per day
Setting the time loop
Possibility to set automation rules in the eWelink software. Create complex rules that bind multiple devices in the application.
Pairing with the eWelink application is the same as in the case of Sonoff devices. Our detailed pairing guide will give you step-by-step instructions.
Modes of operation:
Jog (default) - momentary Monostable mode, press the remote control button, the relay will turn on. Release the remote control button and the switch will turn off. A mode ot supported by the application operates monostable in the application - Impulse.
Self-locking - Bistable mode allows you to turn on devices that remain on until they are turned off by pressing the remote control/app again. Classic relay operation mode.
Variable - Turn on one relay and the other will turn off
Set contains:
Relay controller 4 eWelink ports with RF433 MHz function
Packaging
Instructions in Polish
Sales document
PRODUCT CODE: SE169R
