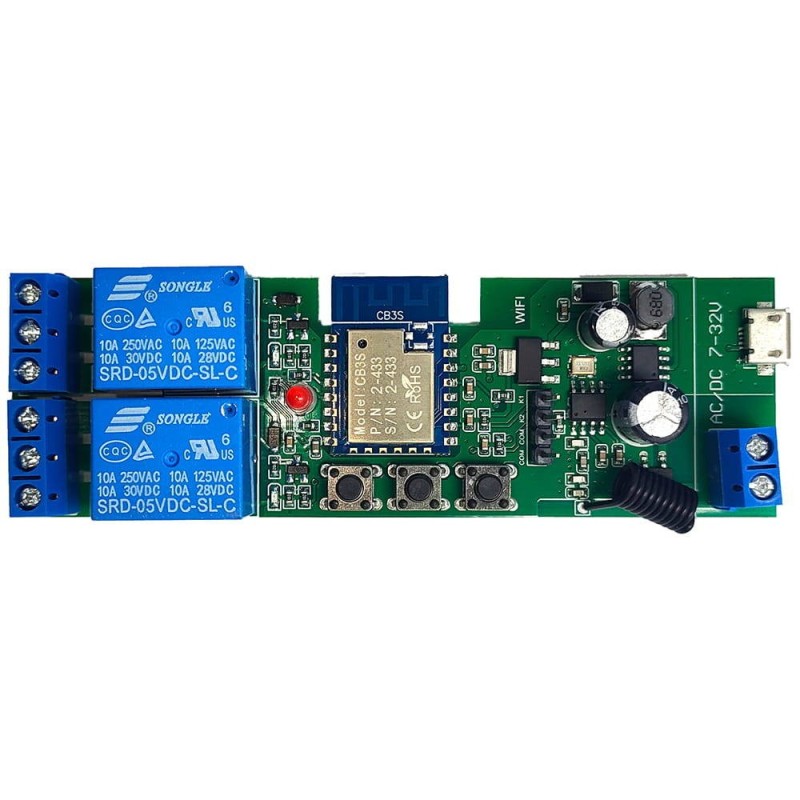

TUYA 2CH DC 5-32V 2 channels WiFi+RF voltage-free
WITH SUPPORT FOR RF433.92MHz REMOTES (remote controls in our other offers)
Power supply - 5 V Micro USB or 7-32 V AC/DC
3 operating modes: monostable (pulse), bistable (self-locking), with time delay.
Pins allowing you to connect external physical buttons K1, K2, COM
Application:
The switch is perfect for controlling lighting, gates, actuators, door control, button signaling, computer control, access control, voltage-free control - heating furnaces, control of 230 V devices
Compatibility – Works perfectly with Google Home or Amazon Alexa voice assistants
Connect it to your gate module in place of the manual button contacts and you have a smartphone-controlled garage door.
Application:
The switch can be used to control access, turn on a computer, garage door, etc
The use of an unstabilized transformer or power supply may result in damage that is ot covered by the warranty.
The device works with Tuya Smart - the most popular application for IoT devices (Internet of Things)
The application works in Polish, you can add and control various smart devices that we have in our offer
Modes of operation:
Jog (default) - momentary monostable mode, press the remote control button, the relay will turn on. Release the remote control button - the relay will turn off. Mode ot supported by the application, in the application it works monostable - impulse.
Self-locking - bistable mode allows you to turn on devices that remain on until they are turned off by pressing the remote control/application again. Classic relay operation mode.
Variable - turn on one relay and the other will turn off
Specification:
Input Power:Â AC/DC 7-32V or USB 5V/500mA
Two input interfaces:Â 7-36V or micro USB 5V
Output:Â 0V - NO/COM/NC x2
Channels:Â 2
Dimensions:Â 105mm x 34mm x 12mm
Receiver:Â RF433.92 MHz fixed codes EV1525
Operating mode:Â monostable/bistable/variable
Input voltages:Â 5V DC or 5V/7-32V AC/DC
LEDs 3 LEDs that indicate working mode, WiFi status, relay status.
Working Conditions: -30°C to 45°C, humidity less than 95%
Standard:Â Wi-Fi 2.4 GHz
Security mechanisms: WEP/WPA-PSK/WPA2-PSKNC: Normally closed relayCOM: CommonNO: Normally open
Set contains:
Tuya 2-channel relay controller with RF433 MHz function
Packaging
User manual in Polish
PRODUCT CODE:Â SWT042R
