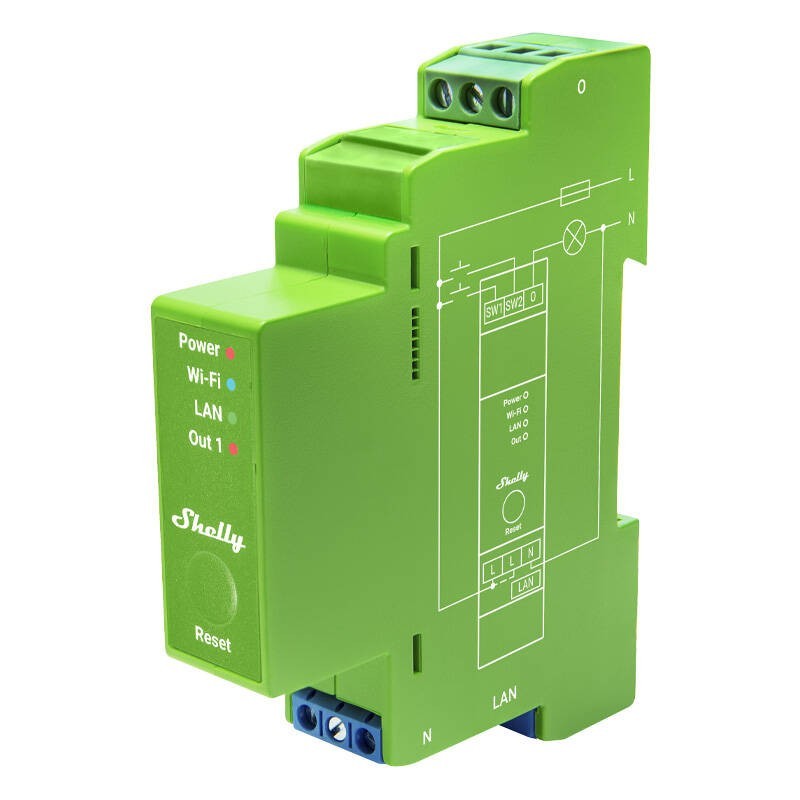

Shelly Pro Dimmer 1 1-channel DIN rail dimmer
The Shelly Pro Dimmer 1 is a state-of-the-art, single-channel DIN-rail-mounted dimmer designed for smart lighting management in the home or office. The device can operate autonomously on a local Wi-Fi etwork or be controlled by cloud-based home automation services. In addition, an integrated web interface allows remote access, control and monitoring of the dimmer's status from anywhere in the world where an internet connection is available. No additional hub is required for the product to function properly - it can be controlled locally or remotely, via Shelly Smart Control or a third-party system.
Features and control
The Shelly Pro Dimmer 1 offers an automatic dimming calibration function, providing smooth adjustment of light brightness throughout the range. The user can choose the control mode via switches or buttons, allowing full control of the device's functionality regardless of the wall installation configuration. The product also supports ight mode, which allows setting a specific level of light intensity after dark. It is also possible to adjust the dimming time from 0% to 100%, as well as the rate of brightness change while holding down the buttons.
Automation and schedules
The Pro Dimmer 1 allows users to create weekly schedules, automating the setting of brightness and transition times, among other things. Users can also set timers and automation scenarios. Customize the lighting in your home to fit your lifestyle - ow the lights can automatically turn off when you go to bed, and turn on when you get up!
Applications and integrations
With the Shelly Pro Dimmer 1, you can easily adjust the lighting in a room to suit your eeds. Create the right atmosphere for any occasion! What's more, the device is compatible with ecosystems such as Amazon Alexa, Google Home and Samsung SmartThings, so you can control it using your favorite app. In addition, the product supports a variety of connection options - it easily connects via Wi-Fi, Ethernet and Bluetooth.
Security and supported loads
Don't worry about the security of your devices. The Pro Dimmer 1 is effectively protected against overheating, surges, overloads and excessive power consumption, among other things. You also don't have to worry about compatibility issues. The product works perfectly with a variety of devices up to 200 watts, such as LED bulbs, traditional incandescent bulbs, halogen bulbs and transformers with low-voltage bulbs, for example.
Manufacturer
Shelly
Model
ProDimmer1
Power supply
110-240 V ~50/60 Hz
Power consumption
< 2 W
Max. output power
200 W
Wi-Fi connectivity
802.11 b/g/n
Wi-Fi RF bandwidth
2401-2483 MHz
Max Wi-Fi RF power
< 20 dBm
Wi-Fi range
Up to 30 m indoors / up to 50 m outdoors
Bluetooth version
4.2
Bluetooth RF band
2400-2483.5 MHz
Max Bluetooth RF power
< 4 dBm
Bluetooth range
Up to 10 m indoors / up to 30 m outdoors
CPU
ESP32-D0WDQ6
Flash memory
8 MB
Max. umber of schedules
20
Operating temperature
From -20°C to 40°C
Operating ambient humidity
From 30% to 70% RH
Material
Plastic
Dimensions
94 x 19 x 69 mm
Weight
75 g
Mounting
DIN rail
Compatibility
Amazon Alexa, Google Home, Samsung SmartThings
