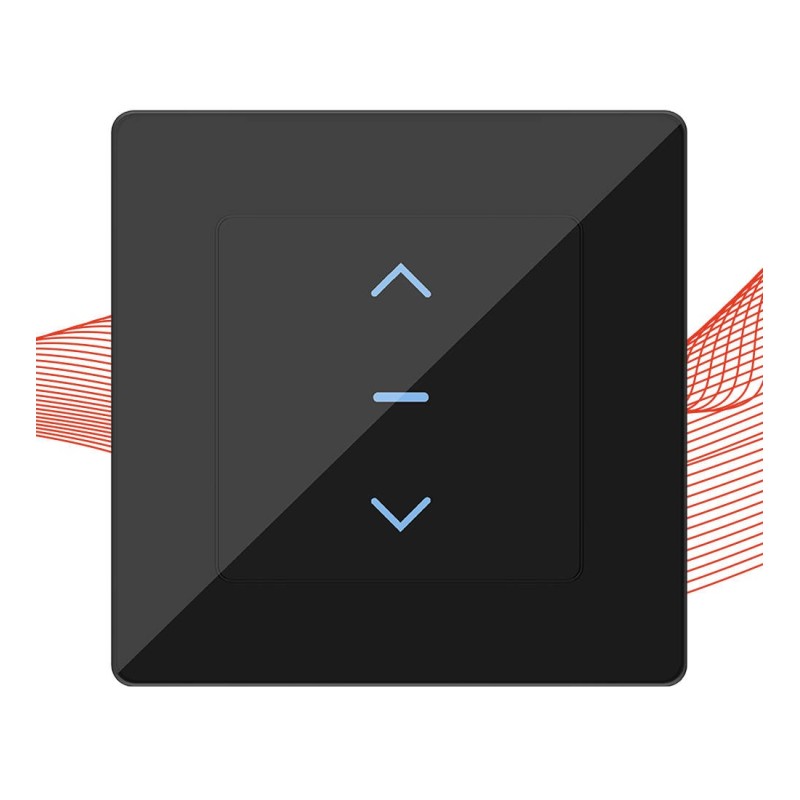

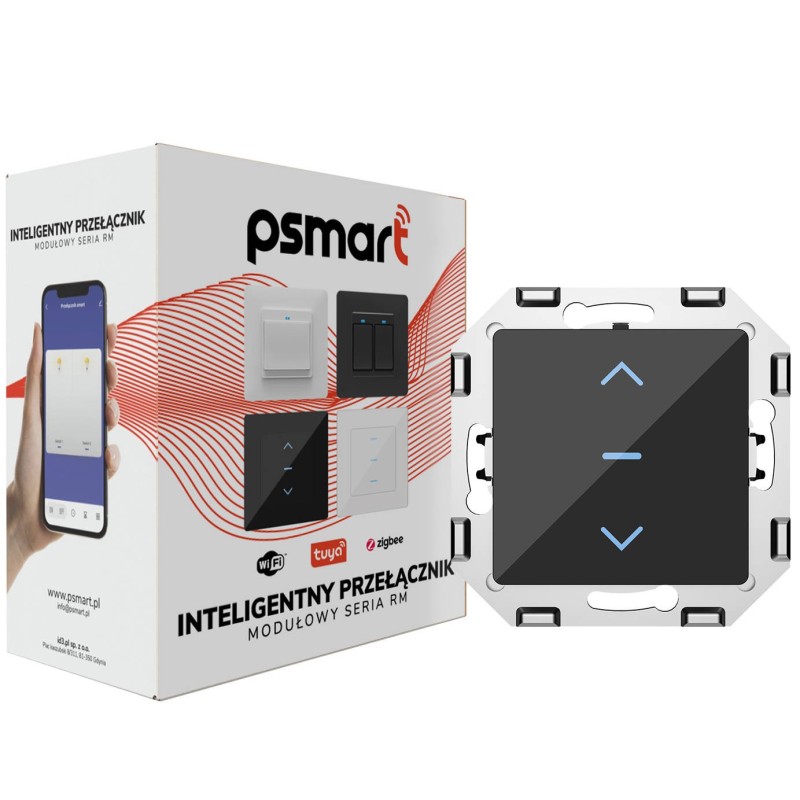

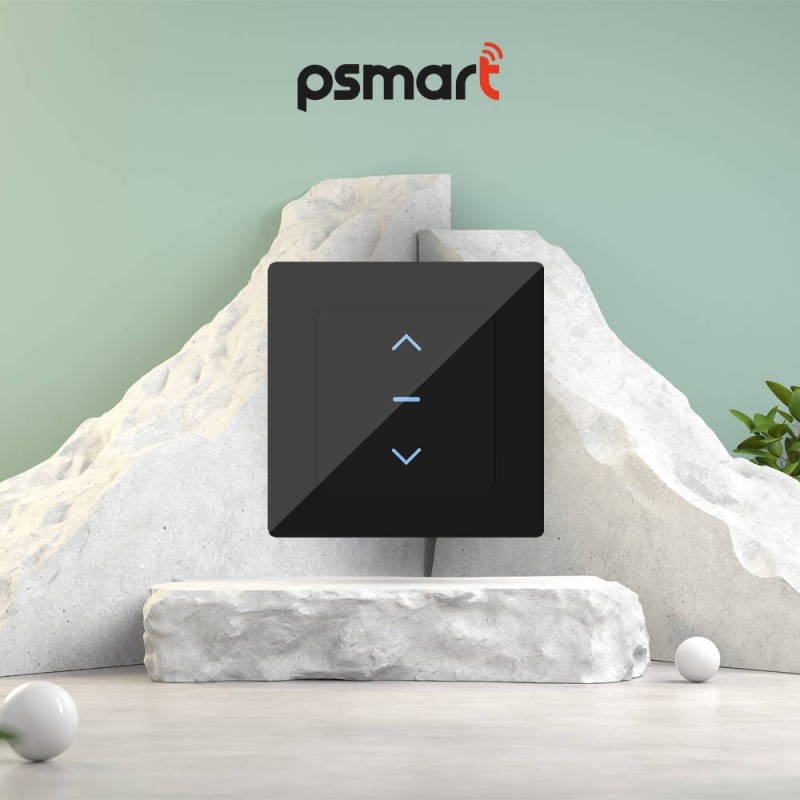

PSMART Touch switch for roller blinds, black, glass, ZigBee TUYA
RM series devices can be connected to each other in frames (available in our offer). Use the RM series in your home - thanks to this you will combine an elegant appearance with intelligent control!

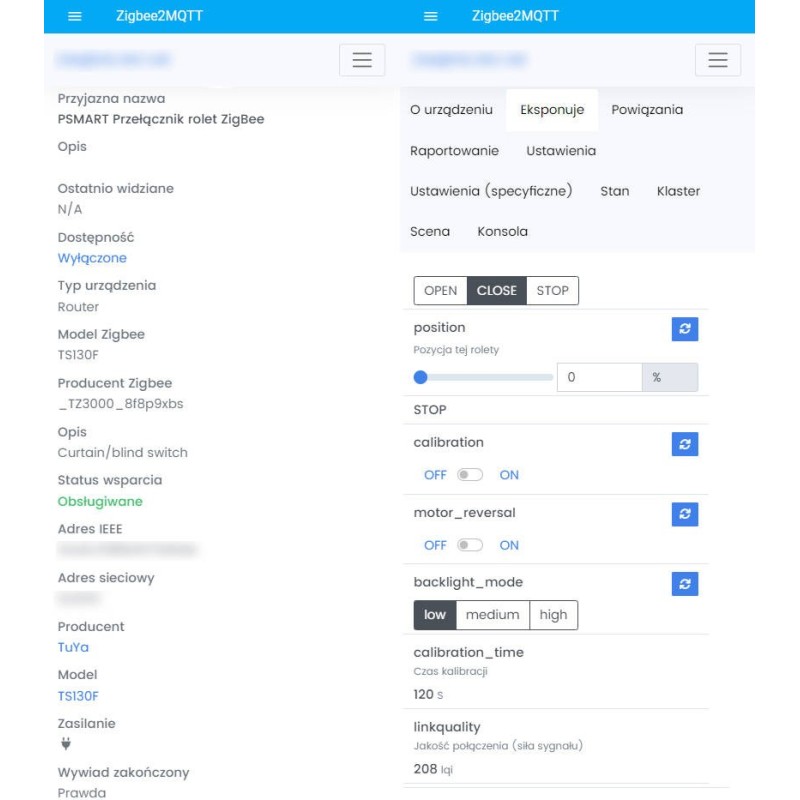

The device is compatible with Home Assistant ZigBee2mqtt! Below are screenshots from the HA application.

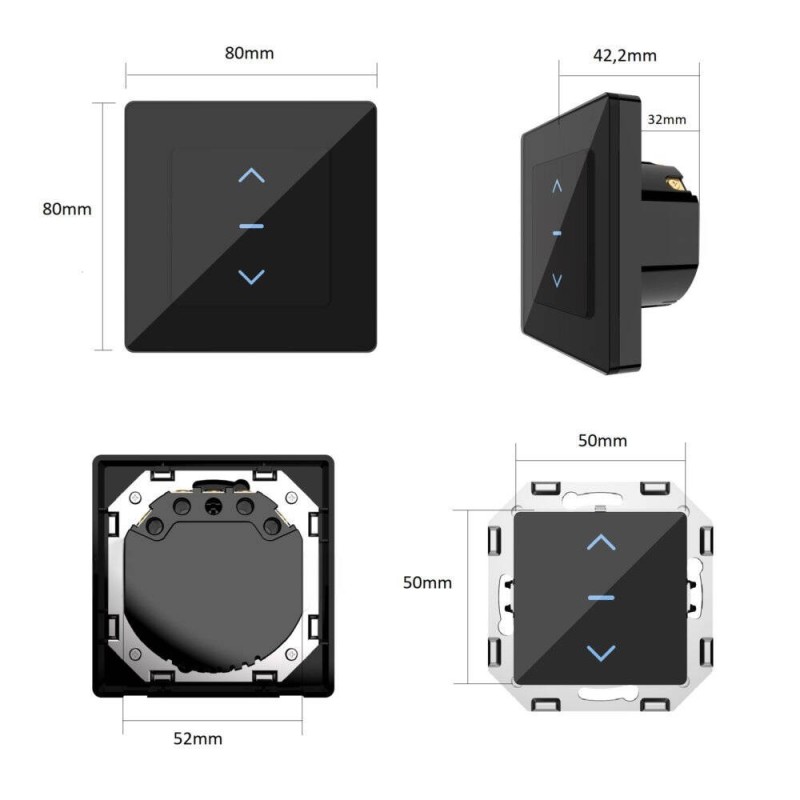

ATTENTION! The offer includes a driver module without a frame. Choose the appropriate single or modular frame from the PSMART offer. Product photos are illustrative, with an example of a single frame.
The most important features:
Possibility of combining with other switches, sockets and roller shutter controllers from this series using dedicated frames (list of available frames below)
The device is compatible with Home Assistant ZigBee2mqtt!
The device has a backlight that can be turned off from the application
Can be launched controller from the touch button or from the application level (open, pause, close)
The controller has two calibration modes:
- Accurate calibration (follow the information provided on the application screen) - Quick calibration (possibility specifying the roller shutter opening time in seconds) Set up automation in the application to automatically open and close the roller shutters according to sunrise and sunset
Works with Amazon Alexa / Google Assistant. You can turn on/off the curtain, roller blind, hands-free via voice functions
Built-in overload protection and fire-retardant material greatly enhance safety of use
Black frames available in our offer.
Choose the appropriate frame for your ew devices.
ATTENTION! For proper operation, an additional TUYA ZigBee gateway is required, available in our offer.
Discover an exclusive and modern product
Convenience of operation
Wireless operation
Failure-free operation, touch operation does ot require WiFi, Internet or cloud
*Depending on delivery, the product may differ slightly from the photos presented in the offer. Make your space smart
Program several smart devices that will allow you to react automatically in any way you want. Let's assume you have an advanced motion sensor - when you enter your home, you can program the relay to automatically turn on the device in your presence. Create your own automations without limits! Automate your entire smart home
Set up reactions between smart devices

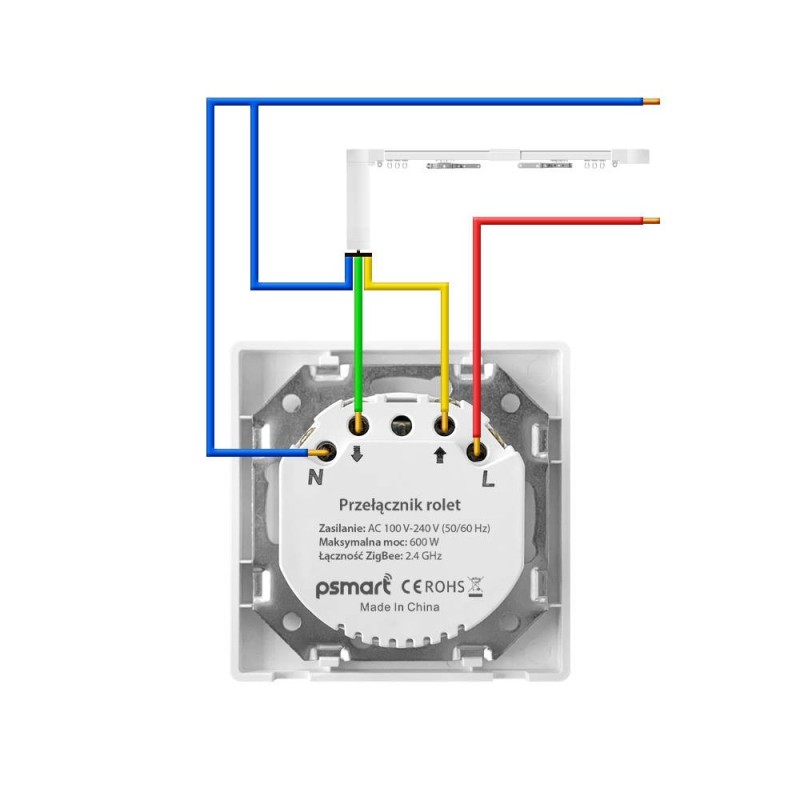

ATTENTION! Before installation, turn off the power to the circuit.
Set your own schedules
Don't sweat yourself running around your devices. Thanks to the TUYA microprocessor, you can set schedules according to your preferences and daily routine. Set the device to turn on and off according to your eeds and save on electricity! Turn devices on or off with schedules, countdowns or automation
Comfort of use
Personalization and setting options are at your fingertips. Become smart by controlling your devices from anywhere, and customize all smart products to suit your applications and respond automatically through previous settings. The product is compatible with peripheral devices, so it can be controlled using voice commands. Power management has ever been so convenient! Compatible with Google Home and Amazon Alexa
Voice control

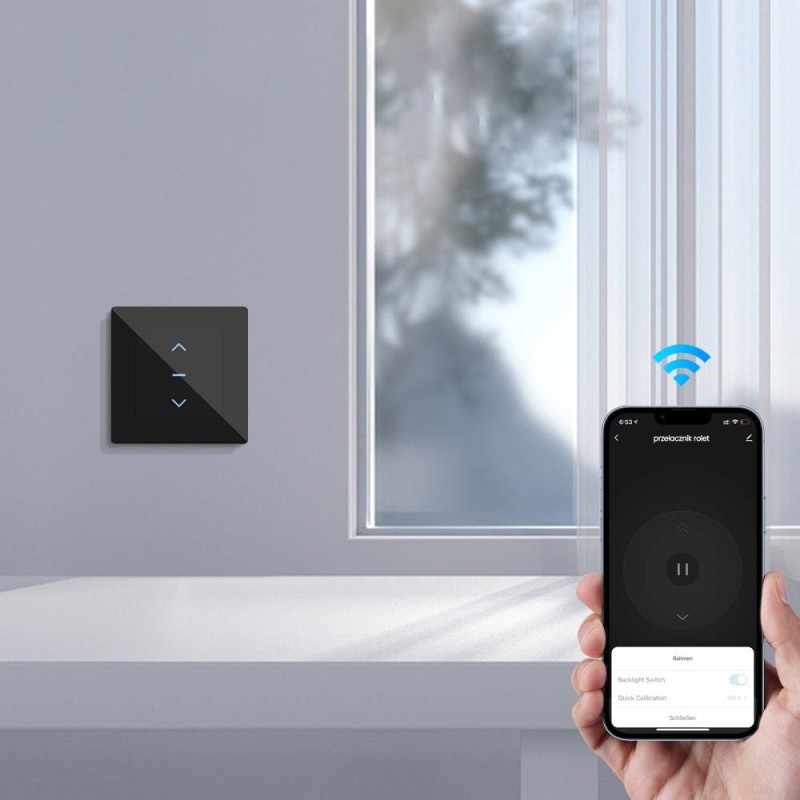

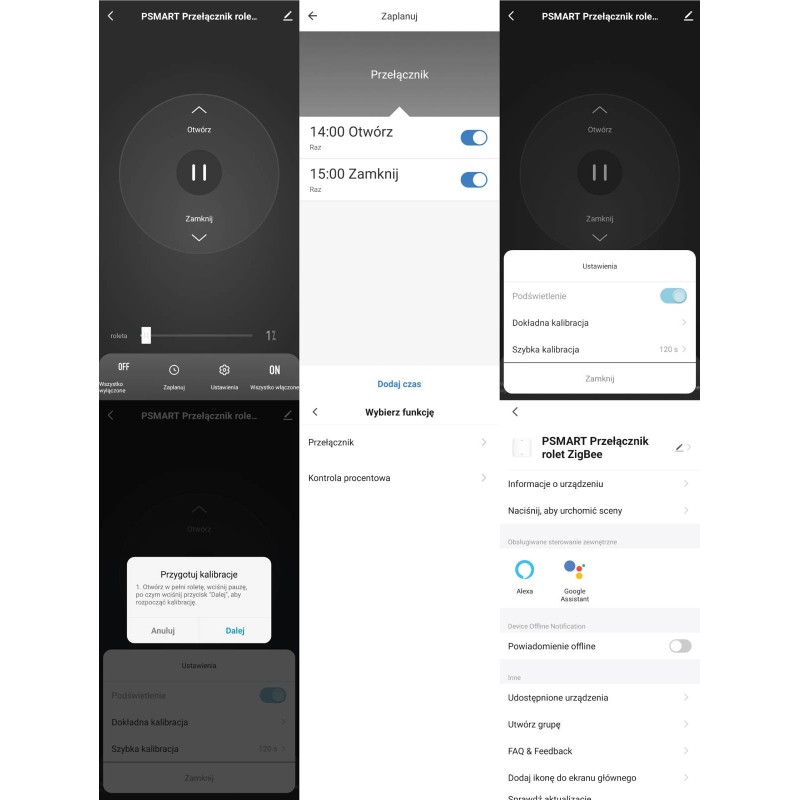

Control thanks to the free TUYA application
Below are screenshots from the Home Assistant ZigBee2MQTT application!
Build your own smart home
Without breaking walls and running cables ³w! The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called 'cloud'. It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can build a etwork of intelligent dependencies using the application. The operation of the devices depends only on the user's creativity. The list of wireless system elements is constantly expanding in our offer. Smart App from Tuya inc. it is an essential element of the entire smart home ecosystem. It allows you to control all applications with Tuya technology. It is free to download for iOS and Android smartphones. There are already over half a million different smart devices powered by Tuya technology. The application is available in many languages, both in Polish. It allows you to connect products via any communication protocol, from Wifi to Bluetooth to ZigBee. For more demanding users, Tuya offers a cloud service for an additional fee, thanks to which all device registry will be storedremotely in the cloud, which will increase your security. The main advantages of the Smart App: Quick registration and easy operation of many devices.
Home management and sharing access to devices between family members.
Communication via any means protocols and even without a connection supported by Pegasus technology, so your devices will always be connected.
Voice control using peripheral devices such as Amazon Alexa or Google Assistant.
Advanced automation of connected smart devices.
Notifications about events directly on your smartphone.
Basics of the Zigbee protocol:
The ZigBee protocol works to propagate well ...the 2.4 GHz frequency occurring in buildingsigBee communications are MESH communications, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If the remote sensor has o connection with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power, which has communication with the gateway (up to 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection
Devices using the ZigBee protocol in the event of a change state, they connect to the control panel in 0.2 seconds, and WiFi eed about 5 seconds to connect to the etwork after the state change. ZigBee devices have a huge advantage when it comes to automating smart rules
On a WiFi etwork, with 25 devices, you will start to experience etwork problems. You can easily add over 50 devices to the ZigBee switchboard
The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved for months.
ZigBee communication uses very little energy, which gives a long battery life.
Specification:
Communication protocol: ZigBee 3.0
Wireless standard: IEEE 802.15.4
Power supply: AC 100-240 V (50/60 Hz)
Maximum power: 600 W
The set includes:
1 x PSMART roller blind controller, black glass, RM ZigBee TUYA
2 x screws 1 x user manual
Product code: T474 We also offer 1, 2 and 3 channel switch modules and RM series sockets.
Get any combination horizontally or vertically.
