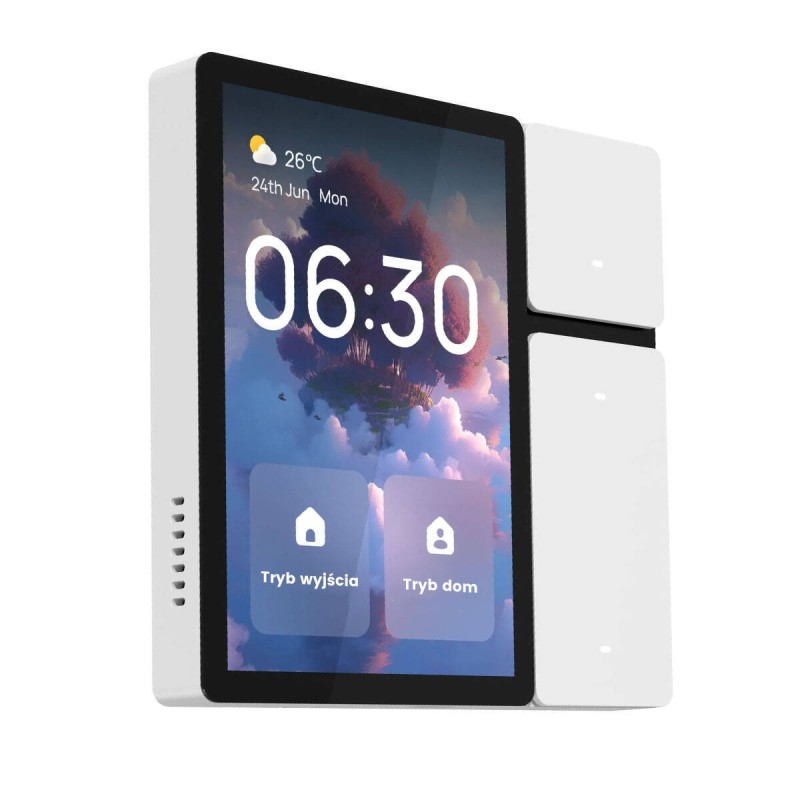

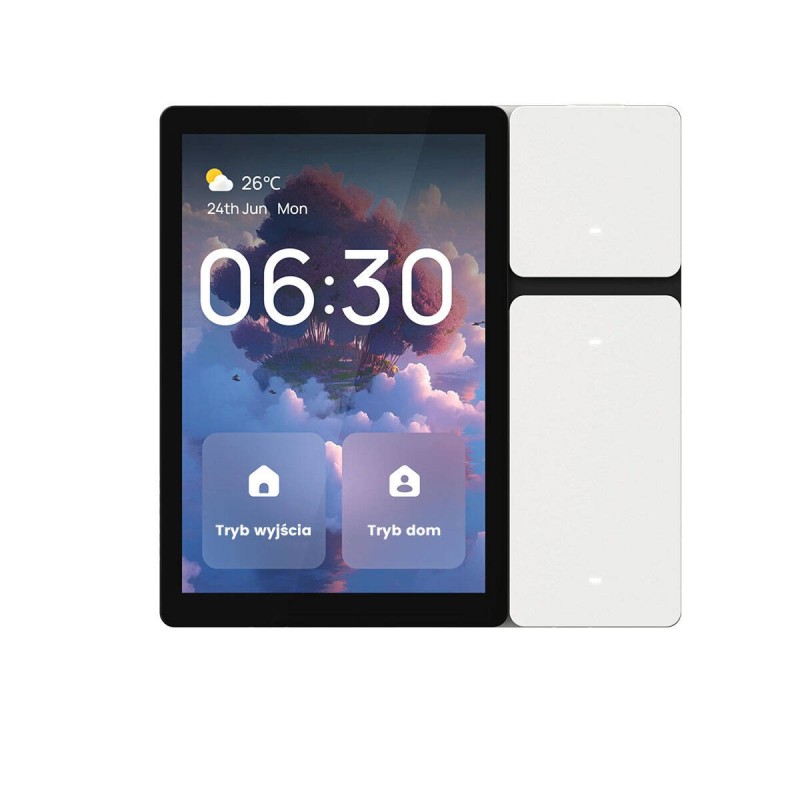

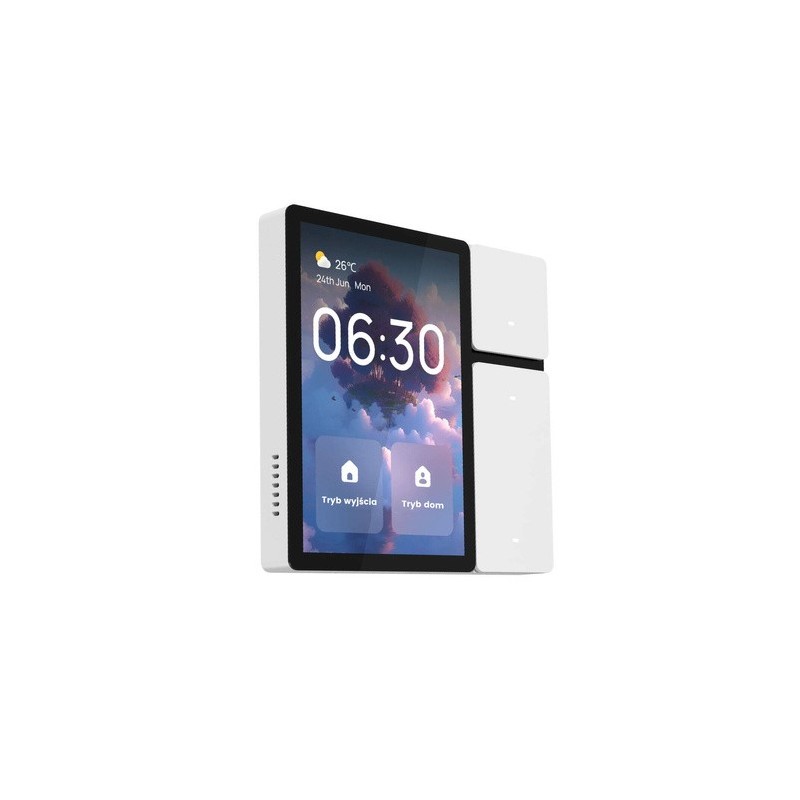

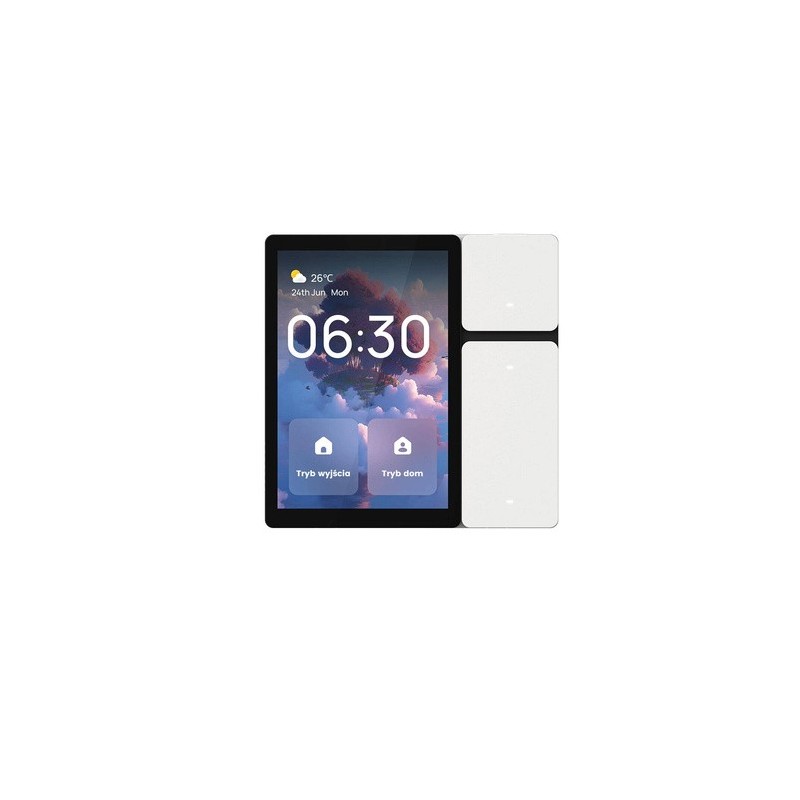

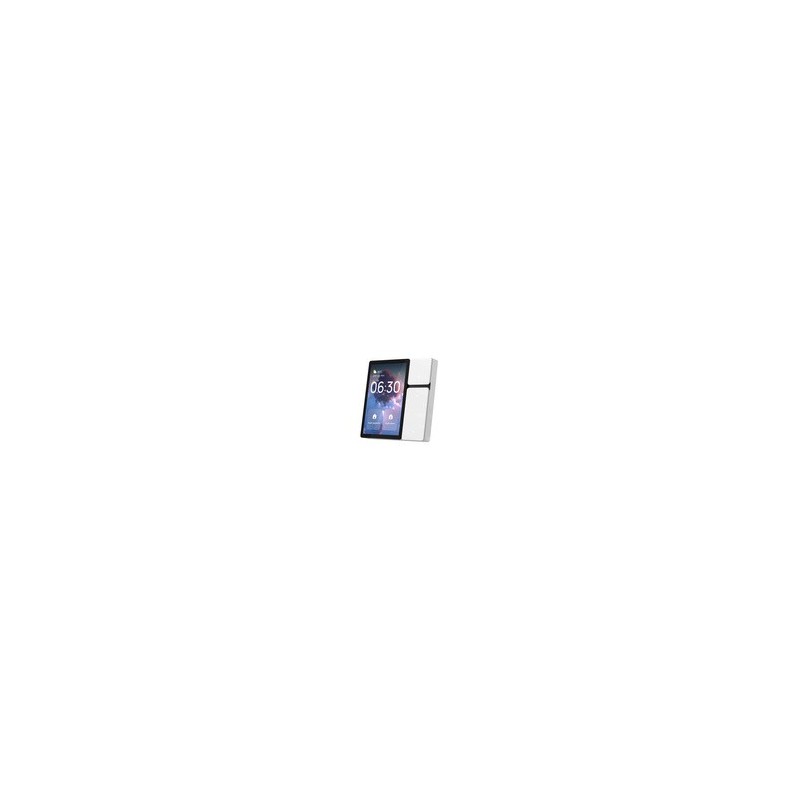

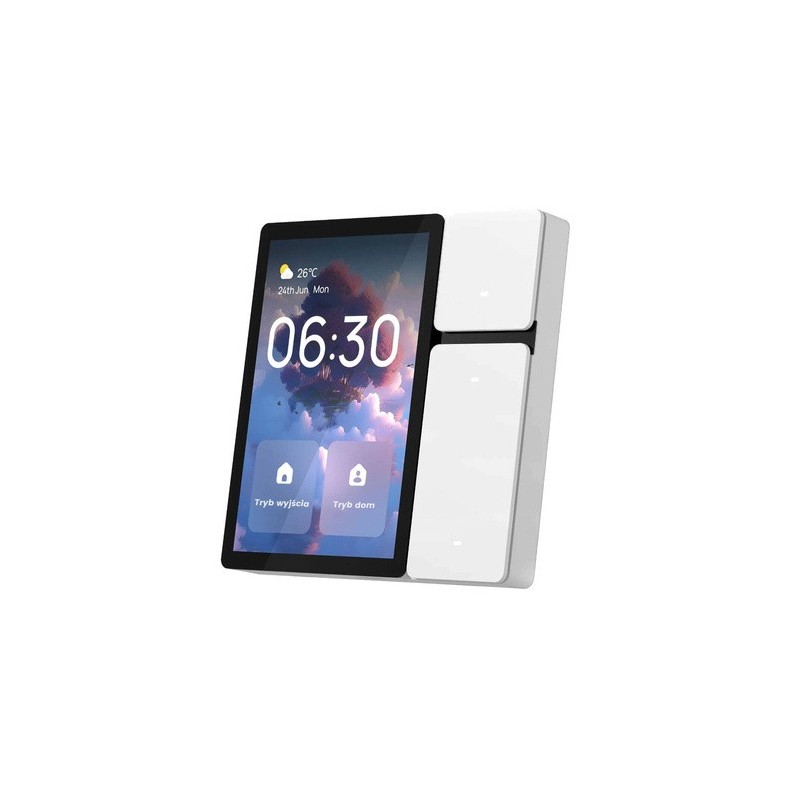

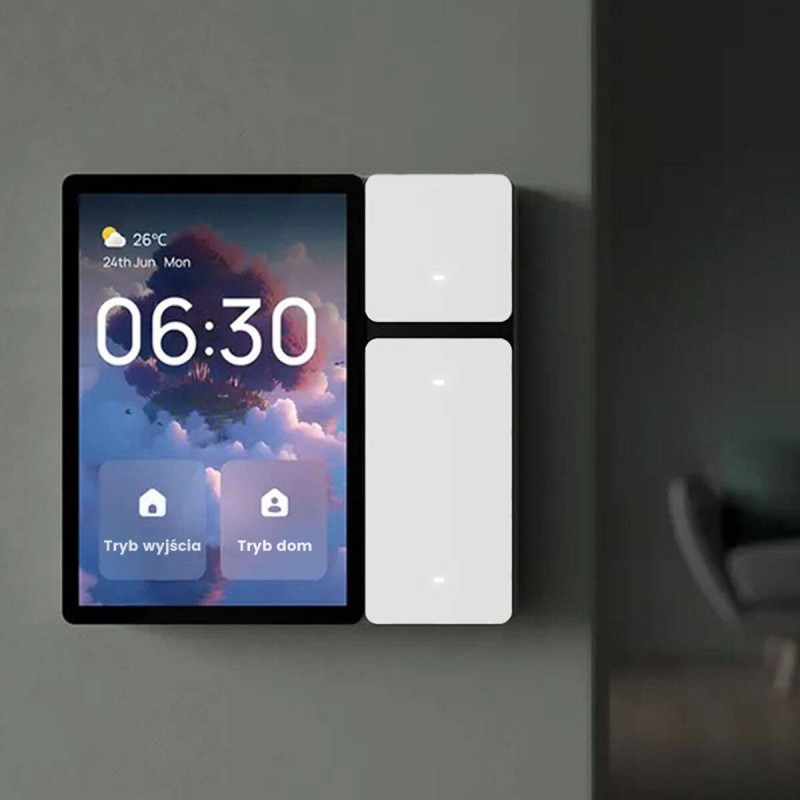

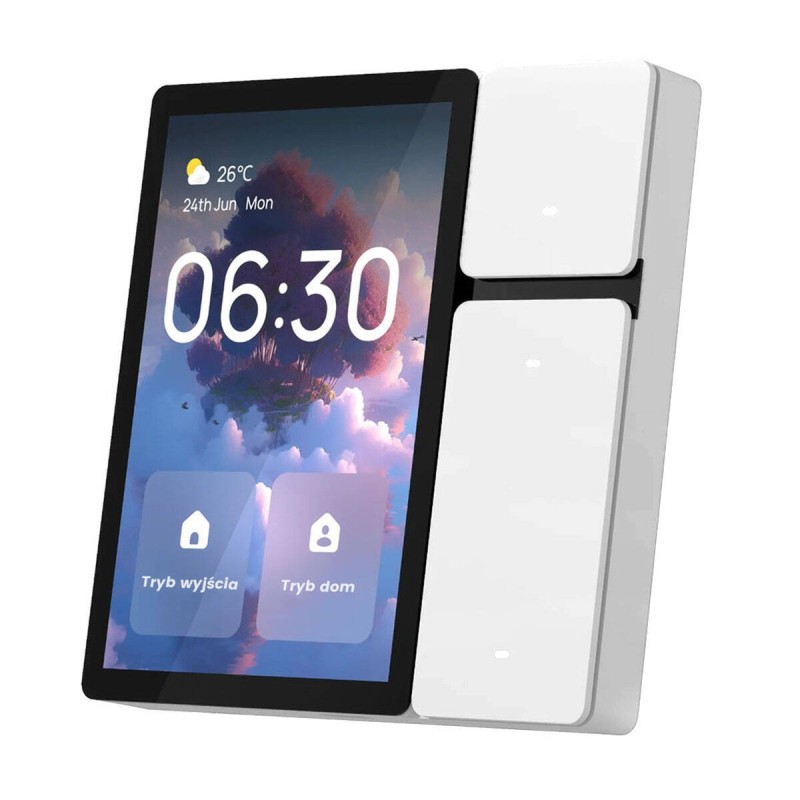

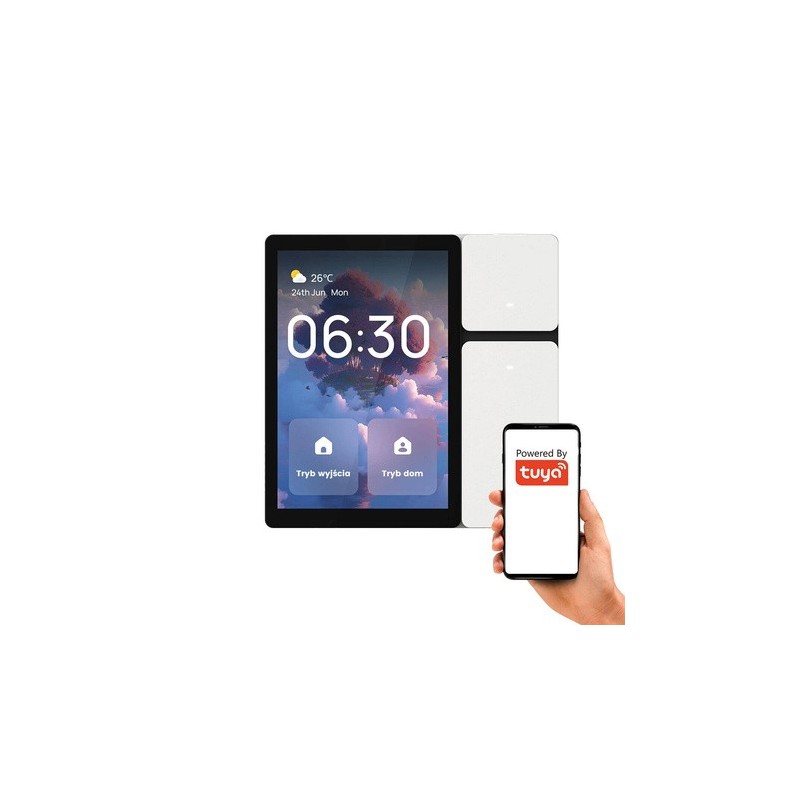

Touch function panel 3.5 Bluetooth gateway 3 buttons WiFi IR TUYA
Mini Panel, which will become your command center for smart devices and will be the heart of your smart home. With its help, through your home WiFi network, you will be able to control your devices added to the TUYA or SmartLife application. It is also possible to connect infrared devices, as well as pair devices in Bluetooth communication.
The device is additionally equipped with a copying remote control function! Thanks to it, you can automate e.g. air conditioning or TV.
The panel has a 3.5-inch touch display and configurable physical buttons, to which you can assign individual options and thus personalize the device to your needs. In addition to remote control of smart devices, the device will also be an excellent security for your home. In the event of activation of e.g. a smoke, motion or flood sensor, the panel will trigger an alarm and notify the user about the event. Additionally, after pairing the panel with a video intercom, it is possible to conduct video calls with people waiting to enter.

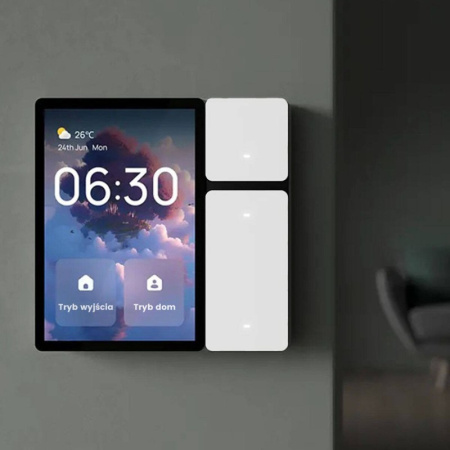

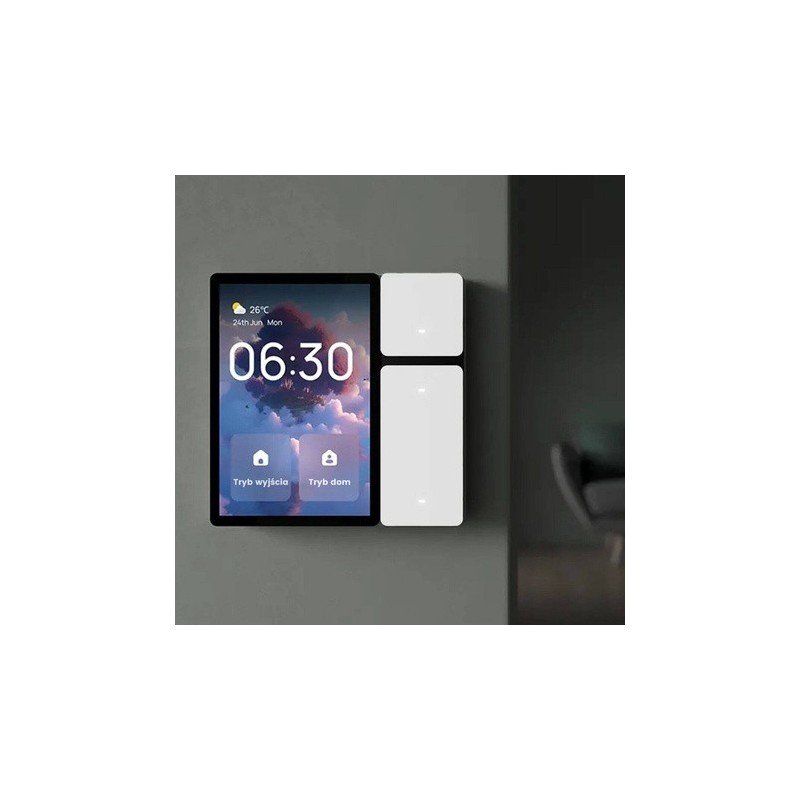

The panel's design allows for installation in standard 60 mm junction boxes.
Most importantly - the panel interface is in Polish!
Main advantages

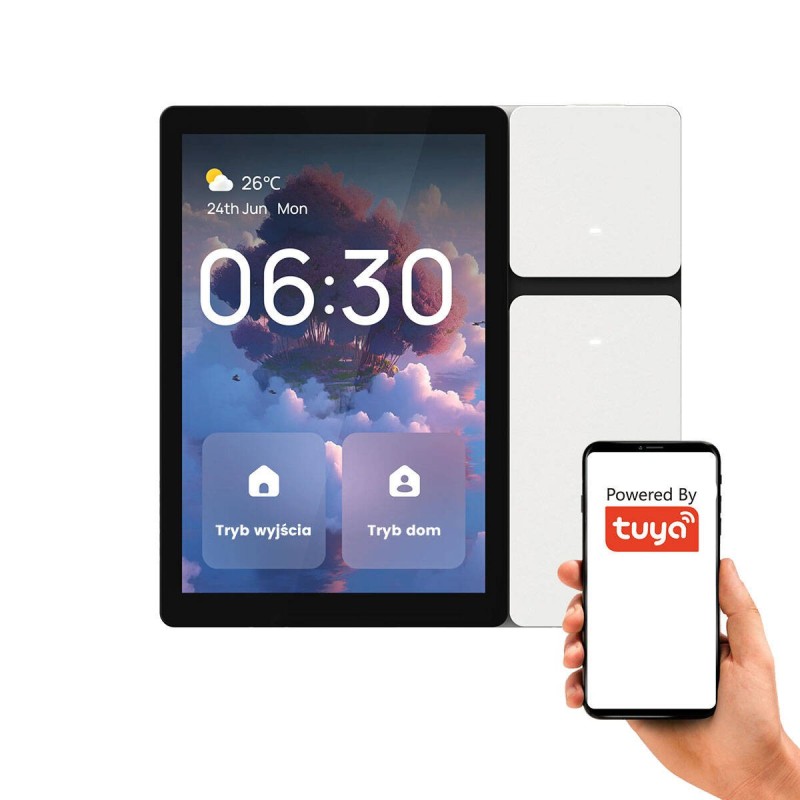

Possibility of control using the free and popular TUYA Smart application | Smart Life from anywhere in the world
Wireless WiFi connectivity
3 asymmetric physical control buttons with bright backlight controlling 3 connected lighting circuits, for example, or assigning them to specific executive scenes configured in the TUYA application
Clear 3.5-inch IPS screen with a resolution of 480 × 320 pixels
Zone control enabling independent operation of devices for a single room, multiple rooms or all rooms
2-way audio allows you to freely talk through the panel with people standing in front of the intercom. Additionally, if the intercom is equipped with a camera, it is possible to see people waiting to enter
The panel connects to security devices to immediately send alarm notifications
Screen saver function - supports digital photo frame and screen saver slide show, as well as showing the time
Built-in infrared module - IR. It has an IR remote control function, thanks to which we can copy the infrared remote control to the properties panel and control, for example, an air conditioner using it
Built-in 3 lamps emitting an infrared signal for better communication using this method
Supports over 110 devices and 12 categories of infrared devices
BLE Mesh gateway (enables communication between Bluetooth Low Energy BLE Mesh devices and other networks, e.g. WiFi or Ethernet)
Stable support for up to 128 devices in the SigMesh network (BLE Mesh protocol defined by Bluetooth SIG)
No additional gateway is required to operate the device. Connect the device to your home WiFi router and enjoy full functionality in any location.

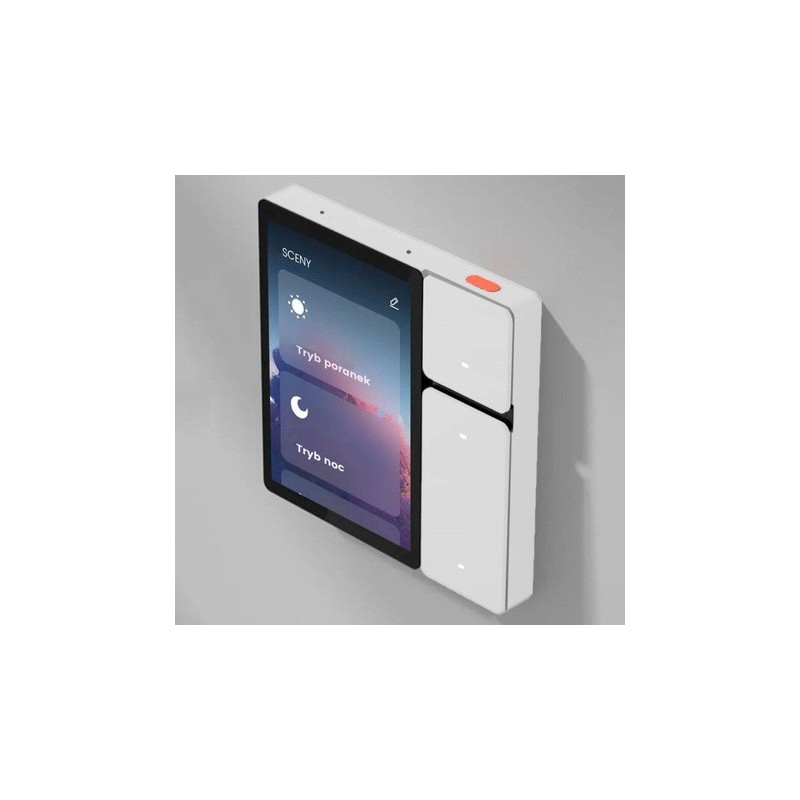

Configure the panel to your preferences

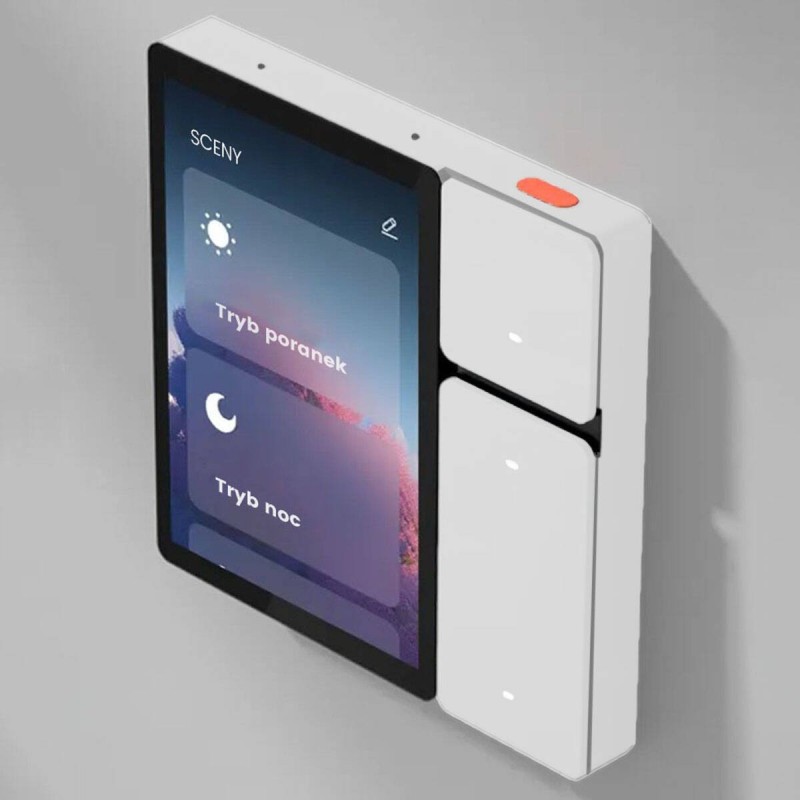

Create a button layout on the panel's touch screen and assign interface keys to your preferences, to TAP TO RUN scenes or other automations. Control devices, lighting, scenes as you like. Each of the 3 available physical buttons can be freely assigned to, e.g. switching on a specific device, automation, lighting system, etc.

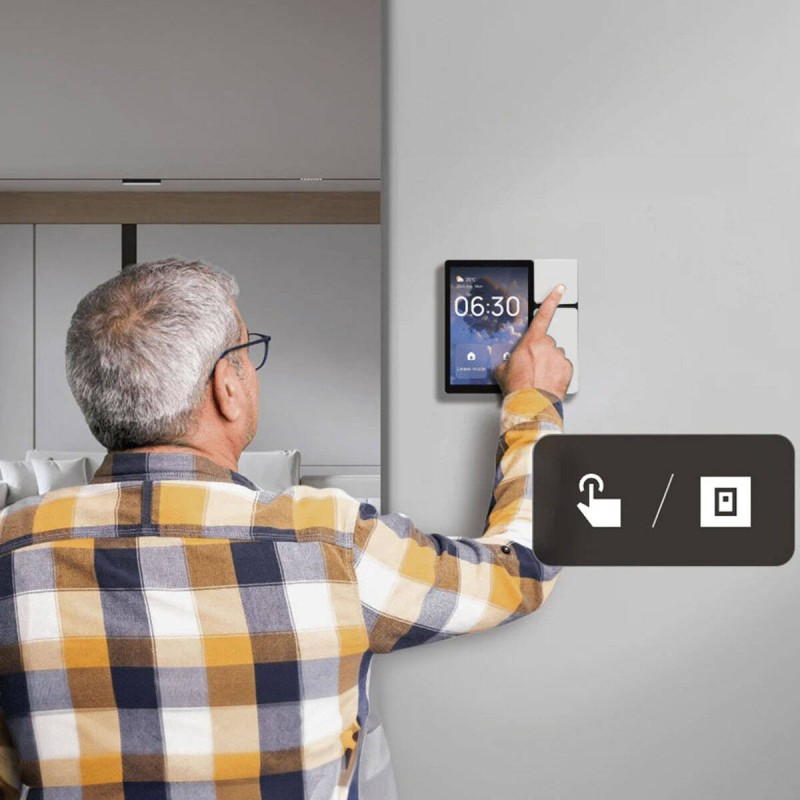

Clear interface and easy control

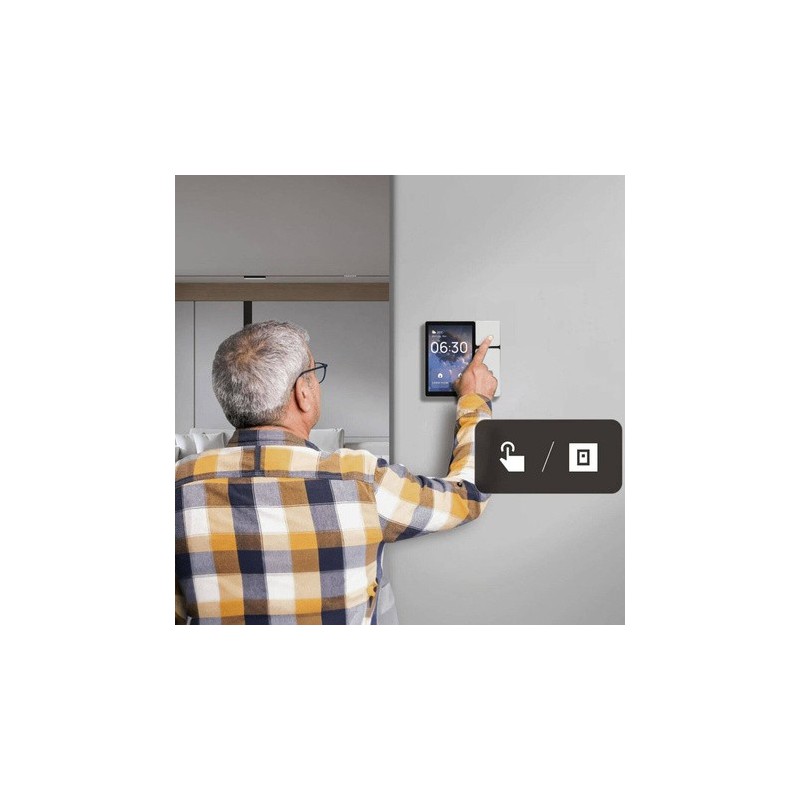

Children and the elderly can handle the intelligent touch panel. Managing it is very easy and intuitive, and the additional ability to personalize your own settings makes this device very user-friendly.
Assign smart devices to zones and rooms
The panel will allow you to assign many devices, which we can sort into specific zones / rooms for order. After creating automation, it is possible, for example, to switch on all devices in a given room, switch on devices in several rooms, switch on only the lighting in given zones, etc. The possibilities are endless.

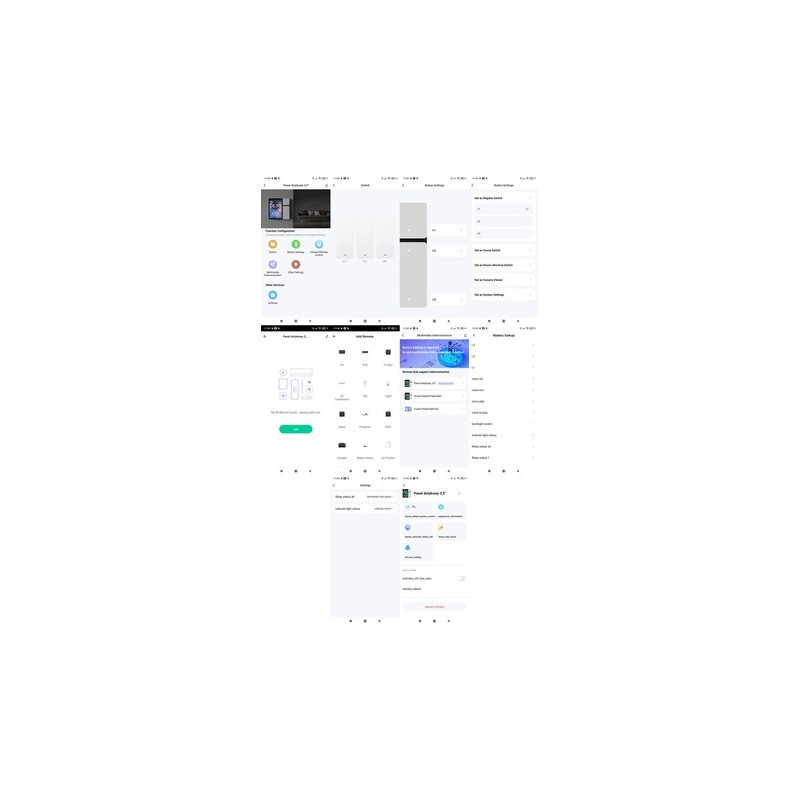

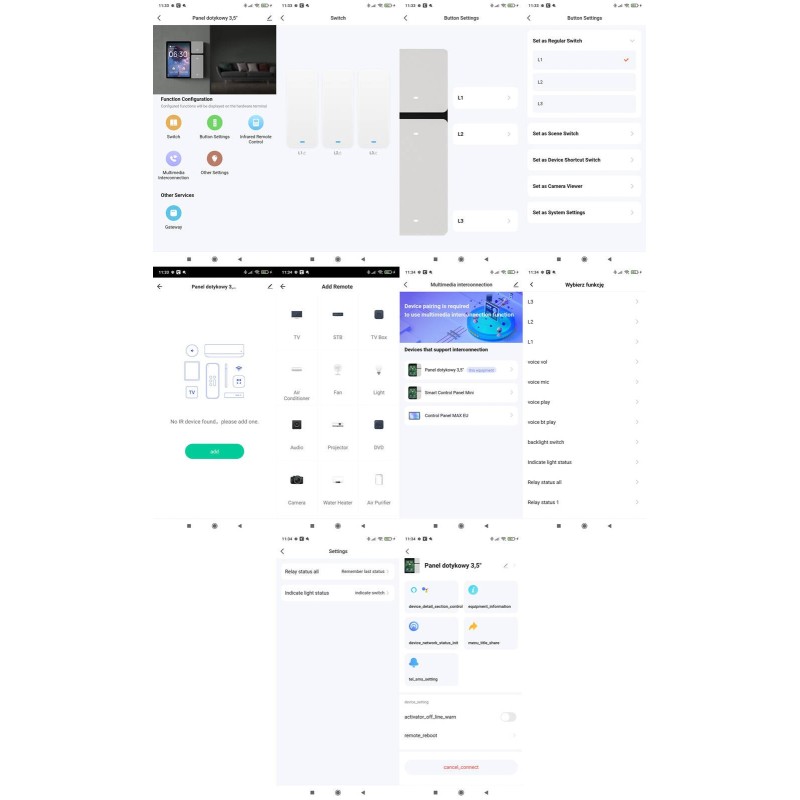

Screens from the TUYA application
IR copy remote control function
The panel has an IR remote control function, so we can also use the function panel as an infrared remote control and control all devices that work with classic IR remote controls (TV, radio, air conditioner, lamps, entrance gate, garage)
Take care of safety

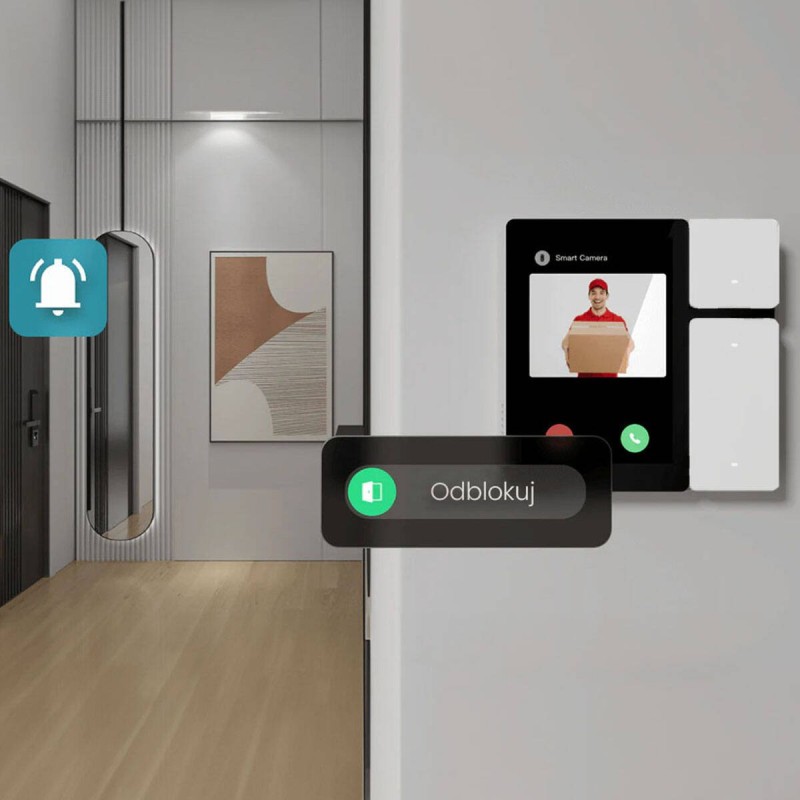

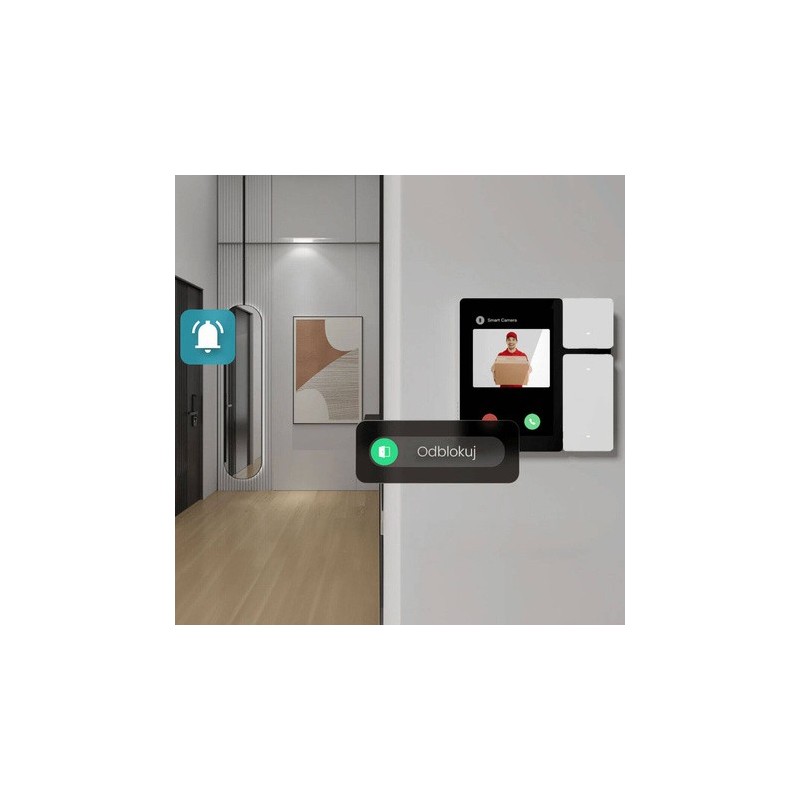

The panel can be an excellent security measure that will not only show people who are waiting to enter, but also allow you to talk to them. For such a solution, you will need a video intercom or a camera with two-way audio support.
Panel with built-in Bluetooth gateway - BLE Mesh
The panel supports Bluetooth Low Energy (BLE) wireless communication technology. This enables reliable and stable communication between Bluetooth Low Energy (BLE) devices and other networks, e.g. WiFi.
Thanks to Bluetooth technology - BLE (Bluetooth Low Energy) Mesh, the panel is able to connect a stable "mesh" of connections up to 128 Bluetooth devices communicating not only with the panel, but also directly with each other within one network.
This gives an increased connection range and greater communication reliability.
Specification
Application: TUYA Smart | Smart Life
Communication: WiFi 2.4 GHz, IR, Bluetooth
Power supply: 100-240 V AC 50/60 Hz
Maximum current: 16 A
Maximum load: total 600 W, per channel 200 W
Display: 3.5 inch IPS
Display resolution: 480x320
IR copy remote control function: yes
Maximum number of supported devices: 128
USB ports: 1 x USB-C
Operating temperature: 0~40 °C
Operating humidity: 5% to 90% RH (non-condensing)
Weight: 153 g
Dimensions
86 × 86 × 11.5 mm (without base); 86 × 86 × 35.5 mm (with base)
The panel's design allows for installation in standard 60 mm boxes.
Included
Touch panel
Product code: T535
